Name: PF-PAT3TC25 : Pipe T-adapter (3-way pipe manifold) 3x TriClamp 1.5" DN25 (D=50.5mm) | Stainless steel
SKU: PF-PAT3TC25
Availability: InStock

PF-PAT3TC25 : Pipe T-adapter (3-way pipe manifold) 3x TriClamp 1.5″ DN25 (D=50.5mm) | Stainless steel

excluding VAT

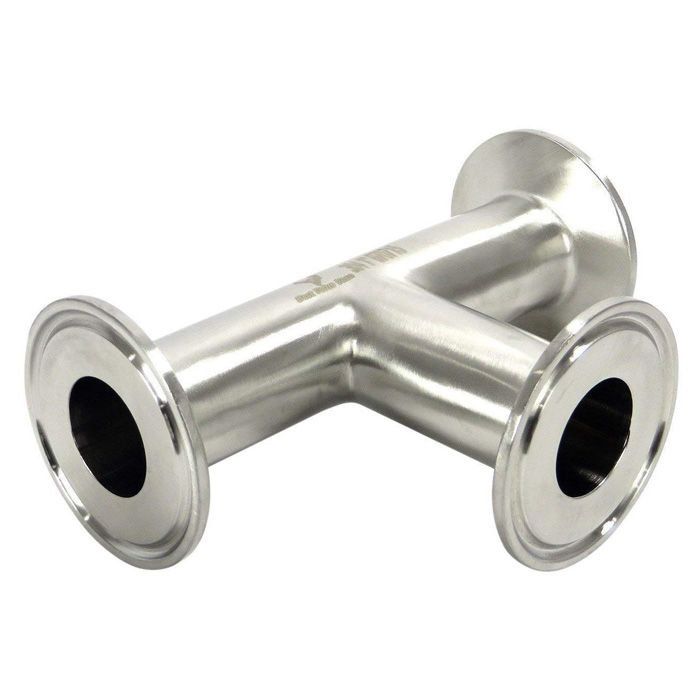

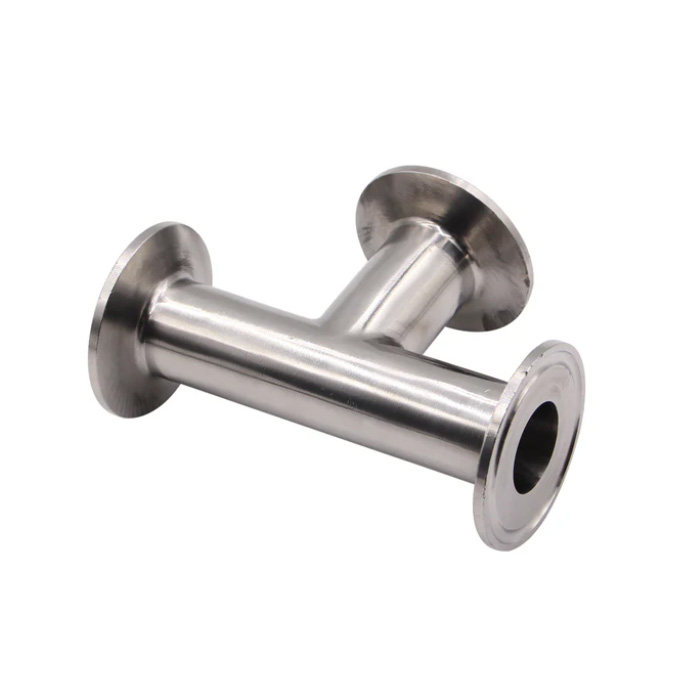

Stainless steel 3-way pipe manifold (T-connector) with three TriClamp connections.
Connections : 3pcs x TriClamp DIN 32676 DN25 / TC 1.5 (Disc diameter of 50.5mm)
Material : Stainless steel AISI 304 / AISI 316L

Description

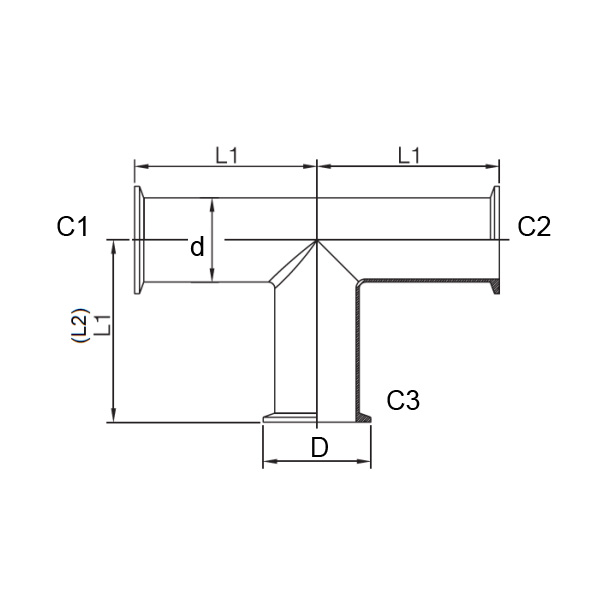

Dimensions / technical parameters :

Material	AISI 304 / AISI 316L / stainless steel
C1, C2, C3 connections	TriClamp DIN 32676 DN25 / TC 1.5″
d – pipe inner diameter	DN25 (25mm)
D – Clamp connection disc diameter	50.5 mm
L1 – pipe length	71.5 mm
Maximal pressure	10 bar
