MTC5 : NANOPILOT 5 – the MultiTank Controller for 1-5 tanks

 2950 excluding tax

The NANOPILOT is the best plug & play solution for simple temperature measuring and control of one up to five tanks in all breweries! The NANOPILOT lifts the fermentation of your product (beer, wine, cider, kombucha) to a new level: very comfortable and smart.

Description

The NANOPILOT is the best plug & play solution for simple temperature measuring and control of one up to five tanks in all breweries! The NANOPILOT lifts the fermentation of your product (beer, wine, cider, kombucha) to a new level: very comfortable and smart.

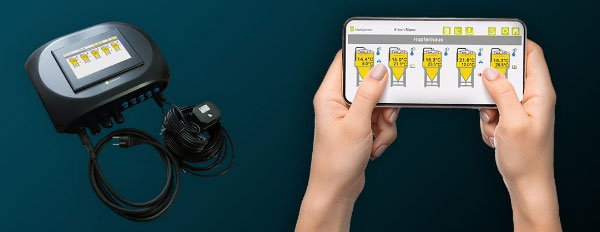

NANOPILOT Multi Tank Temperature Controller

The NANOPILOT MultiTank Controller offers a complete solution for temperature control of one up to a maximum of five fermenters (tanks).

  • Simple and uncomplicated plug & play application includes all needed hardware and software in one package
  • Control and monitoring of five tanks with individual preset temperatures for each tank
  • Operating modes : monitoring, cooling or heating
  • The unit displays : valve status, alarm, operating mode, recipe choosen
  • Current temperature, target temperature, notation
  • Tank grouping – group access
  • Web Interface – remote access through RJ45 socket – LAN
  • Recipe management with 8 profiles – temperature or time­ controlled

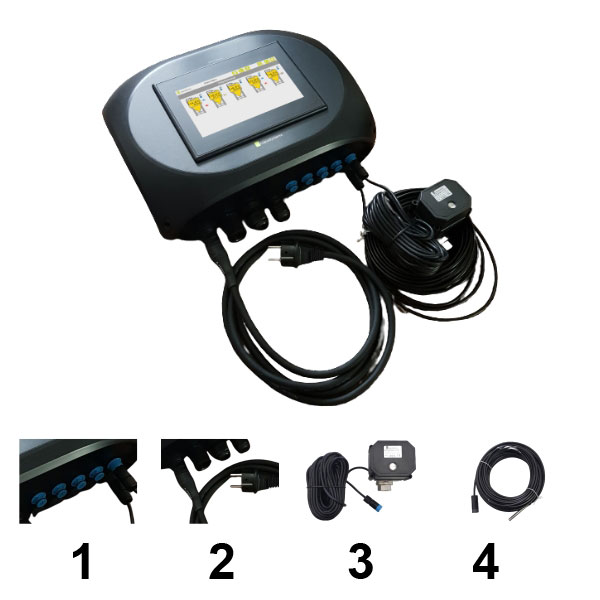

The package includes :

NANOPILOT - Description

  1. Compact digital temperature controller with connection of 1-5 tanks (with the touch 7″ display)
  2. Power supply cable 110-240V / 50-60Hz
  3. Motorized ball valves 1/2″ Female with ~ 10m cables (5 pcs) – stainless steel body, IP65
  4. Temperature sensors with ~ 15m cables (5 pcs) – PT100, 1/3 DIN, VA sleeve
  5. Simple and uncomplicated application
  6. Operation via controller, PC or smartphone



Dimensions: W: 355mm x H: 255mm x D: 122mm

Additional information

Weight 3 kg
Dimensions 380 × 290 × 150 mm
