Description
The machine is designed to the washing and rinsing of apple, pears or other fruit before next processes. Capacity up to 3000 kg per hour. Fully made in European Union.
Electric supply : 3phase 400V/50Hz (optionaly 3phase 220V/60Hz)
On the input the fruit falls directly into the water, then the belt conveyor pulls fruit out from the water, where the machine cleans it with high pressure water and pass on to the next workplace. The machine is suitable for any fruit processing lines due to the adjustable speed of the conveyor.
Technical description :
- Fruit and vegetable washing, rinsing and transporting at the same time
- Efficient rinsing with high pressure nozzles
- Adjustable belt speed
- Easy to move – 2pcs rotable wheels and 2pcs fix wheels
- Easy to clean
- Massive polypropylene/acetal modular conveyor
- Steplessly adjustable speed in both directions
- Capacity up to 13000 kg per hour (apples, pears)
- Made of stainless steel AISI 304 / 1.4301
- Electric consumption : 0.75 kW / 16A
- Electrical connection : 3phase 400V/50Hz (optionaly 3phase 220V/60Hz)
- IP65 certified electronics
- Water connection : 3/4“ quick connector
- Water consumption 20-100 liters/min (depending on the setting)

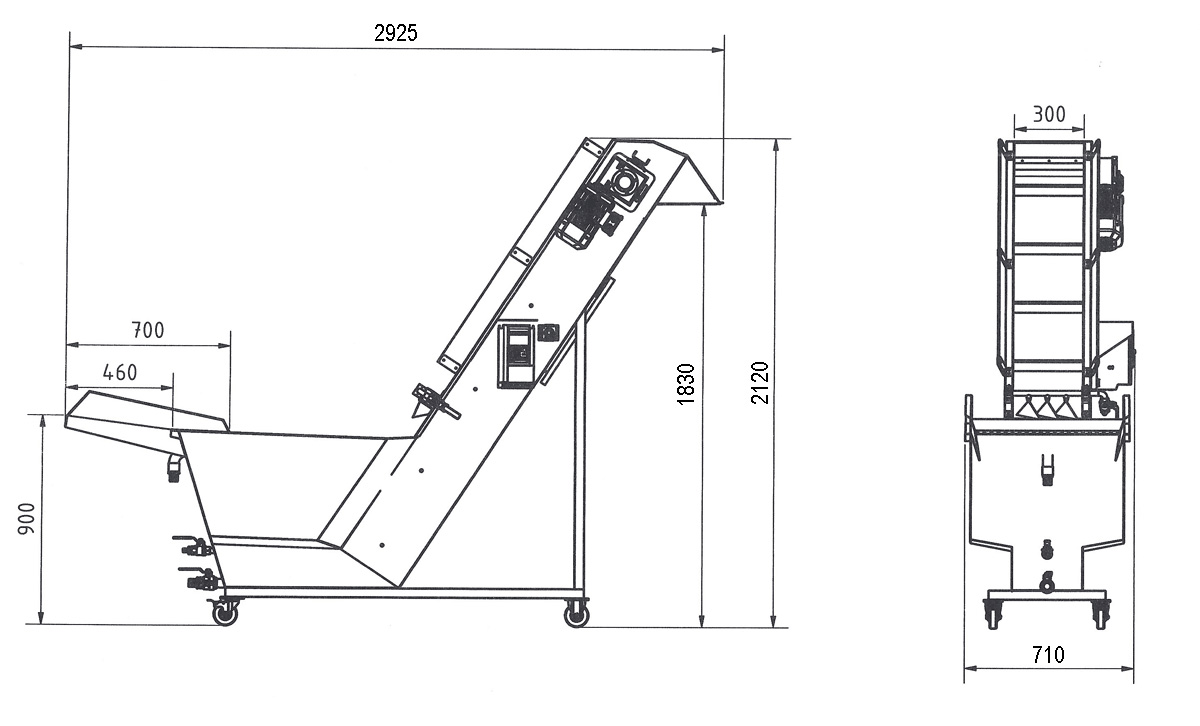

Dimensons :
- Output height … 1830 mm
- Lenght … 2925 mm
- Width …. 710 mm
- Height … 2120 mm
- Weight … 135 kg
Optional equipment :
| Stop & Go system (membrane sensor and switch that allow to operate the fruit washer and the beltpress together ) | € 890,- |
| Air blowing into the washing water for more intense fruit washing | € 1290,- |
| Circulating pump for washing water | € 1290,- |
| Silicone cover on the fruit output | € 350,- |
| Elevation (non-standard higher fruit input and output for request) / price for each 100 mm | € 350,- |
| Elevator’s paddle module | € 35,- |
| Elevator’s link module | € 26,- |
| Elevator’s pin between modules | € 11,- |
| Spare brush for the washing module (set) | € 590,- |
| Bearing for the elevator axis | € 110,- |
| Frequency inverter for variable speed | € 690,- |
