CBDT-2TB : Cobra Beverage Dispense Tower For 2 Taps, Black Plated Brass

Cobra beverage dispense tower for two taps (the I-shaped beer-tap stand), made of black pained brass, with built-in stainless steel circulating refrigeration tube, without dispense taps.

Main properties and parameters :

• Designed For Two Taps
• Material: Brass
• Surface finish: Black Plated
• Inside beer and coolilng tube: stainless steel AISI 304
• Beer Tap Connectors: 5/8″ (European standard)
• The Hole Diameter: 35mm
• Taps, handles, spacer rings, placquet holders not included
• Beverage lines : 8mm stainless steel pipe x 0.5mm thickness
• Cooling lines : 8mm stainless steel pipe x 0.5mm thickness

The body of the Cobra (Kobra / Kobbra) type tap stand in black for dispensing two kinds of beverage. Thanks to its typical cobra head curved shape, it is one of the most popular tap stands.

The stand is prepared for mounting one tap with a standard 5/8″ thread (compatible with most tap valves in Europe and the USA) and installation in the worktop.
The stand is equipped with a built-in stainless steel after-cooling loop, which helps keep the beverage cold all the way to the tap and improves the quality of the tap.
The after-cooling loop is used when connected to under-counter cooling, which is equipped with a pump for circulating cooling water in the cooling loop cooling the pipes with the beverage. When used with contact cooling without a circulation pump, the cooling loop is not connected and remains unused.

Please note:

The delivery includes only the body of the stand. The tap, handle, spacer ring and plaque holder are not included. These accessories serve, among other things, to cover the thread on the tap fitting.

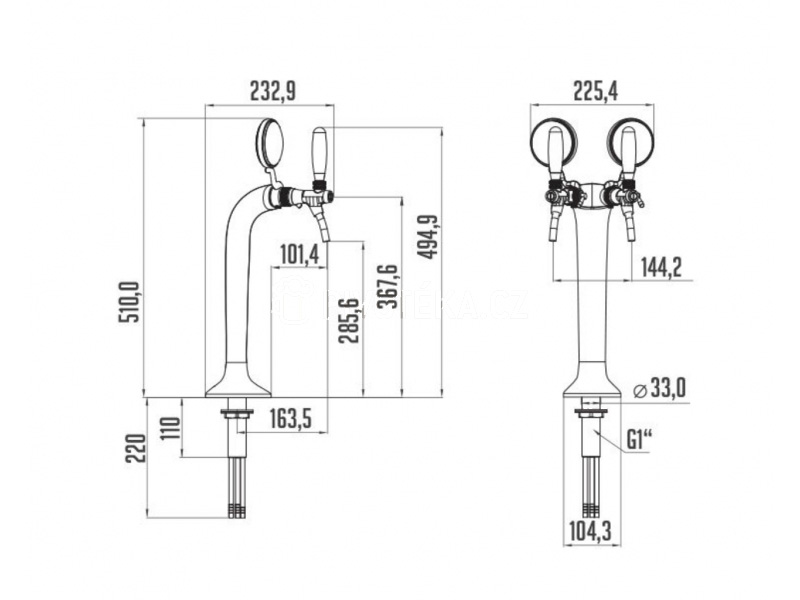

Dimensions :

Example sets with the Cobra Beverage Dispense Tower :

The set includes the folowing components  :

1. CBDT-2TB : Cobra Beverage Dispense Tower For 2 Taps, Black Plated Brass
2. BTM-PHB-IS90 : Black-plated medailon (drink placquet holder) D=90mm for beverage dispense towers, with distance ring (I-shaped, short)

3. DTP-AU135BC : The AURORA lever beverage dispense tap with the foam compensator and EU 5/8″ shank L=35 mm | Brass body, Copper outer design

The set includes the folowing components  :

1. CBDT-2TB : Cobra Beverage Dispense Tower For 2 Taps, Black Plated Brass
2. CSR-BP20 : Cobra Spacer Ring 20mm – Black Plated Brass

3. DTP-AU100BG : The AURORA lever beverage dispense tap with the foam compensator and EU 5/8″ shank L=35/55mm | Brass body, Gold outer design
