Description
Cobra beverage dispense tower for one tap (the I-shaped beer-tap stand), made of copper pained brass, with built-in stainless steel circulating refrigeration tube, without a dispense tap.
Main properties and parameters :
- Designed For One Tap
- Material: Brass
- Surface finish: Copper Plated (Copper Colour)
- Inside beer and coolilng tube: stainless steel AISI 304
- Beer Tap Connector: 5/8″ (European / US standard)
- The Hole Diameter: 35mm
- Tap, handle, spacer ring, placquet holder not included
- Beverage line : 8mm stainless steel pipe x 0.5mm thickness
- Cooling line : 8mm stainless steel pipe x 0.5mm thickness
The body of the Cobra (Kobra / Kobbra) type tap stand in black for dispensing one type of beverage. Thanks to its typical cobra head curved shape, it is one of the most popular tap stands.
The stand is prepared for mounting one tap with a standard 5/8″ thread (compatible with most tap valves in Europe and the USA) and installation in the worktop.
The stand is equipped with a built-in stainless steel after-cooling loop, which helps keep the beverage cold all the way to the tap and improves the quality of the tap.
The after-cooling loop is used when connected to under-counter cooling, which is equipped with a pump for circulating cooling water in the cooling loop cooling the pipes with the beverage. When used with contact cooling without a circulation pump, the cooling loop is not connected and remains unused.
Please note:
The delivery includes only the body of the stand. The tap, handle, spacer ring and plaque holder are not included. These accessories serve, among other things, to cover the thread on the tap fitting.

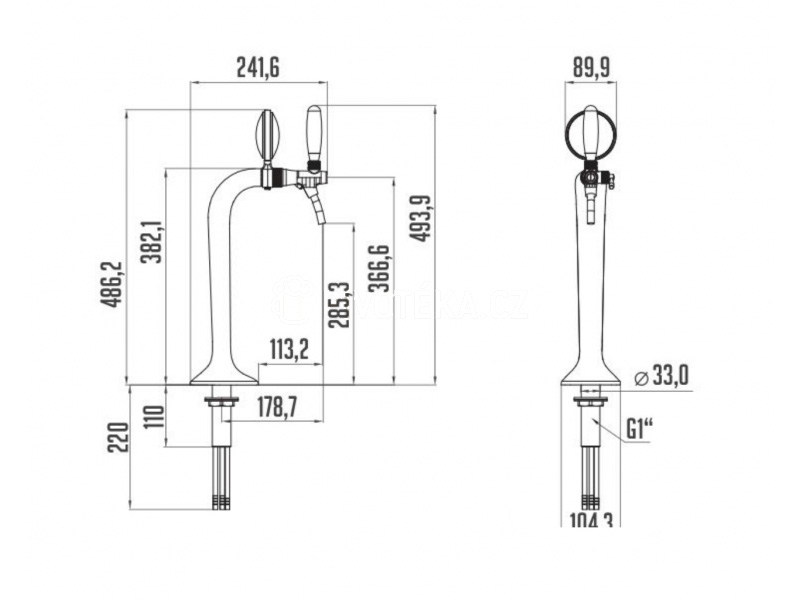

Dimensions :
Example set with the Cobra Beverage Dispense Tower :
The set includes the folowing components :
- CBDT-1TC : Cobra Beverage Dispense Tower For 1 Tap, Copper Plated Brass
- BTM-PHC-IS90 : Gopper-plated medailon (drink placquet holder) D=90mm for beverage dispense towers, with distance ring (I-shaped, short)
