Description
The complete set of equipment for the production, cooling and serving cooled soda water and the cooling and serving two other beverages from kegs (with couplers of A-flach and S-bajonet). The set constists of the SODA AS110 GreenLine machine (the soda water maker and the cooler for two beverage lines), the LINDR GRAND beverage dispense stand for three beverages.
The SODA AS110 GreenLine is a special device that is designed for the quick and convenient production cooled soda water (with mixing of water with carbon dioxide) and colling two other beverages (beer, cider, lemonade, juice etc.) High cooling capacity of 60-110 l/hour enables professional use in restaurants, catering facilities, bars and home pubs.
The LINDR GRAND three-tap tap stand will become the dominant feature of any beer bar. When designing it, the producer based it on the LINDR T series, but modified its construction to make its assembly as easy as possible, so that anyone can handle it.
All connection elements are included (hoses, couplers, CO2 reduce valves).
The set includes :
SODA AS-110 Green Line – the soda water maker and the beverage cooling machine 1pc
Lindr T Grand 3 beverage dispenser tower 1pc
Grand 3 accessories oak casing 1pc
Insulated pipe set for Lindr T Grand 3 + 1pc
Chrome beverage dispenser tap 35 mm LOGO 2pcs
Wooden dispenser tap handle – keg 3pcs
Stainless steel dispenser tap 35 mm with long tip 1pc
LINDR keg dispensing head – S-bajonet connection type 1pc
LINDR keg dispensing head – A-flach connection type 1pc
CO2 pressure reducing valve MM CO2 with two manometers and outputs, thread for CO2 bottle G3/4 1pc
Python 3+2 (insulated hose bundle) 2m
JG F7/16 x 9.5mm (Quick Hose Coupler) 2pcs
JG F1/2 x 9.5mm (Quick Hose Coupler) 1pcs
JG F5/8 x 9.5mm (Quick Hose Coupler) 4pcs
JG “Y” 9.5×9.5×9.5mm (Quick Hose Coupler) 1pcs
JG SS straight reduced 9.5 x 8mm (Quick Hose Coupler) 3pcs
JG SS straight reduced 12.7 x 8mm (Quick Hose Coupler) 2pcs
JG SS straight reduced 12.7 x 8mm (Quick Hose Coupler) 2pcs
JG straight nipple 9.5 x 8mm (Quick Hose Coupler) 1pcs
Sanitation adapter for keg connectors S-bayonet and A-flach 1pcs
Drip tray 400x220x20mm stainless steel (to be placed under the beverage dispense stand) 1pcs
Water filter and head VH3-JG 3/8″ (for AP3) 1pc
Water filter cartridge AP3-C 765 S 1pc
CO2 pressure regulator MRA 1/4-9.5mm – ready (preset) 1pc
Note :
If you need a different combination of the keg dispensing heads (keg dispense couplers) we can change them to another types (A-flach / S-bajonet / M-kombi / KeyKeg / G-type). It is necessary to specify required types of the keg dispense couplers in your order.
Warning :
The SODA AS110 GreenLine machine is not designed as a postmix equipment.
Only water can be carbonated. Two next drinks must already be ready in the external kegs and the machine serves only for their flow-through cooling before serving into glasses. The machine cannot saturate these two drinks in the external kegs with CO2.
Technical parameters of the SODA AS110 GreenLine machine :
| Ice bank | 10–20 kg |
| Refrigerant type | R290 |
| Maximum cooling capacity to 0°c / tk45°c (l/hour) | 110 (l/hour) |
| Number of cooled drinks | 3 |
| Air compressor | no |
| Compressor cooling capacity | 860 W | 1/3 hp |
| Continuous cooling capacity | 60 L / hour |
| Heat drop temperature | 10°C |
| Cooling loop length | 2×16.0 m |
| Soda water | 60–110 L / hour |
| Power consumption | 943 W |
| Nominal current | 4.1 A |
| Power supply voltage / frequency | 220–240V / 50Hz~1 (optionaly : 110–120V / 60Hz~1) |
| Beverage connections (water to be carbonated / 1st drink in an external keg / 2nddrink in an external keg | 3x Quick hose connector : 9.5mm (3/8″) |
| CO2 connection | 1x Quick hose connector : 8mm (5/16″) |
| Weight | 38 kg |
| Power cable | EUR standard (optionaly : US standard) |
Main advantages :
- Easy To Port – easy and safe handling thanks to the handles, which are placed on the sides of the device.
- Performance – this machine offers up to 110 l/hour of high-quality chilled sparkling or still water.
- GREEN LINE – the SODA AS model is in the GREEN LINE version.
- Equipment – the standard supplied part is a thermostat allowing smooth and precise regulation of the drink temperature.
- Compact design – The external soda maker and cooler stands out for its simplicity and small dimensions – it can be placed under a table or bar.
How the assembly the full beverage dispense system with the SODA AS-110 GreenLine machine

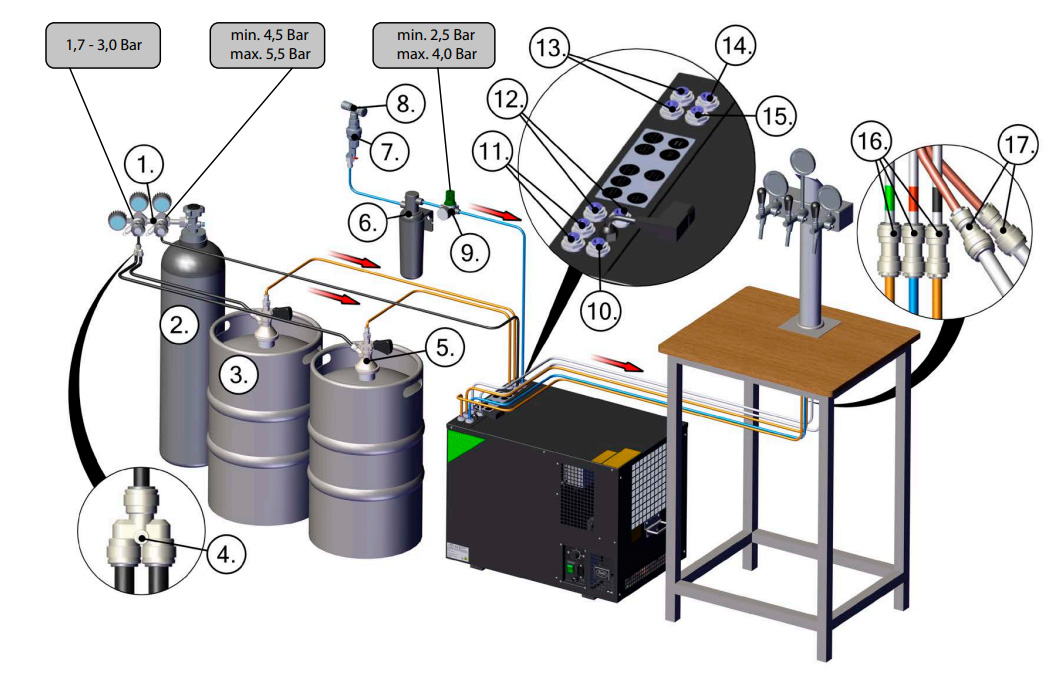

Scheme of the fully equipped system for the soda water production and the cooling two other beverages :
1. CO2 pressure reducing valve MM CO2 with two manometers and outputs, thread for CO2 bottle G3/4
2. CO2 pressure cylinder (it is necessary to bought or rent it from your local industrial gas distributor)
3. Kegs with beverages – not included in the set
4. JG “Y” 9.5×9.5×9.5mm (Quick Hose Coupler) – carbon dioxide lines
5. Keg couplers (A-type / S-type / M-type / G-type / KeyKeg )
6. Water filter and head VH3-JG 3/8″ + Water filter cartridge AP3-C 765 S
7. Water tap – not included in the set
8. Aquastop (recommended) – not included in the set
9. CO2 pressure regulator MRA 1/4-9.5mm
10. Soda water outlet for hose hose outer diameter 9.5 mm
11. Beverage outlet 1, 2 for hose hose outer diameter 9.5 mm
12. Cooling circuit inlet / outlet (for the beverage dispense stand)
13. Beverage inlet 1,2 for hose outer diameter 9.5 mm
14. Water inlet to the machine for hose outer diameter 9.5 mm
15. CO2 inlet to the machine for hose outer diameter 8 mm
16. JG SS straight reduced 9.5 x 8mm (Quick Hose Coupler) – beverage lines
17. JG SS straight reduced 12.7 x 8mm (Quick Hose Coupler) – cooling lines
Dimensions of the SODA AS110 GreenLine machine :

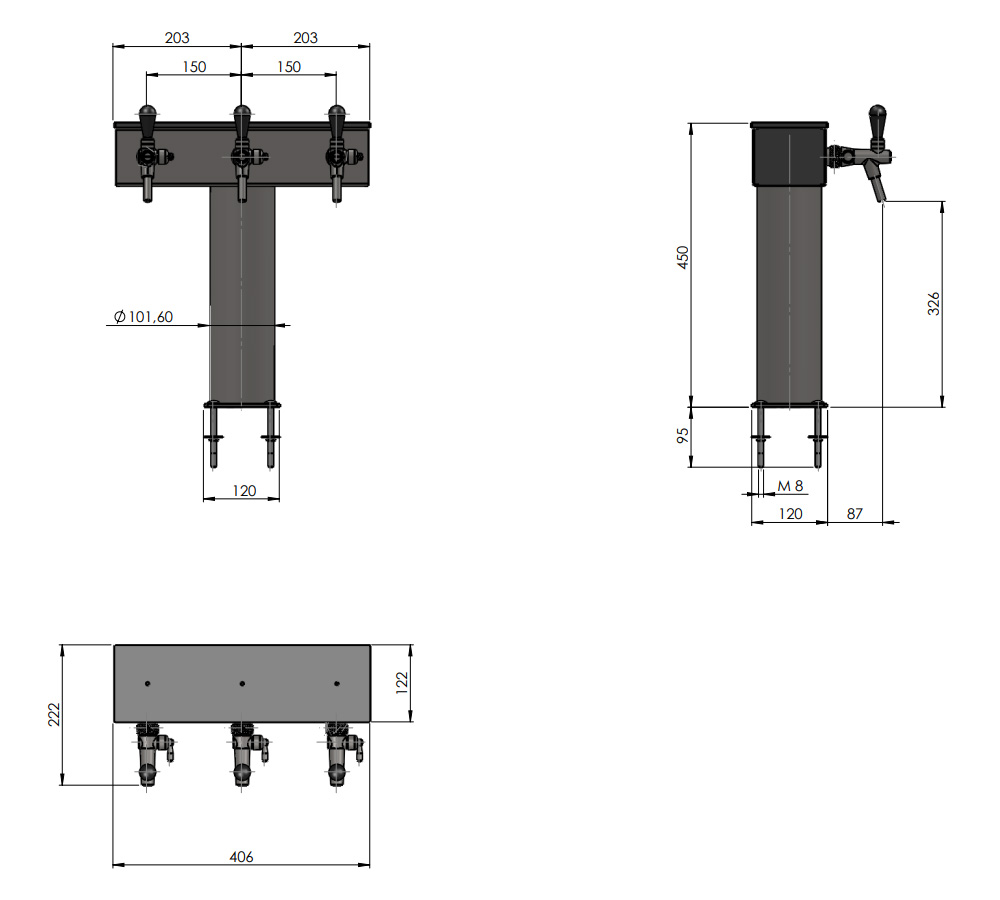

Dimensions of the LINDR GRAND 3-tap beverage dispense stand :
