PMX-VER3 : Postmix Ver3 | Soft drink production machine – three drinks

Postmix PMX-VER3 is ​​a special device that is designed for the quick and convenient production three types of cooled lemonades or two cooled lemonades and soda water.
You can immediately offer fresh and refreshing drinks with a sufficiently large production capacity.

The heat exchanger of the cold is an aluminum block in which the carbon dioxide saturator, stainless steel evaporator and beverage bellows are embedded.

The dosage of the syrup is preset with the possibility of adjustment. The inlet connection at the bottom of the device allows water, syrups and CO2 to be supplied from any side.





Technical parameters :

• 3 chilled drinks  or 2 chilled drinks  + water or soda
• 3 mechanical tap head
• Stainless steel casing
• Robust construction
• Cooling capacity of the device: 35 l/h
• Dimensions width/depth/height: 280/ 470/ 440 mm
• Weight: 33 kg

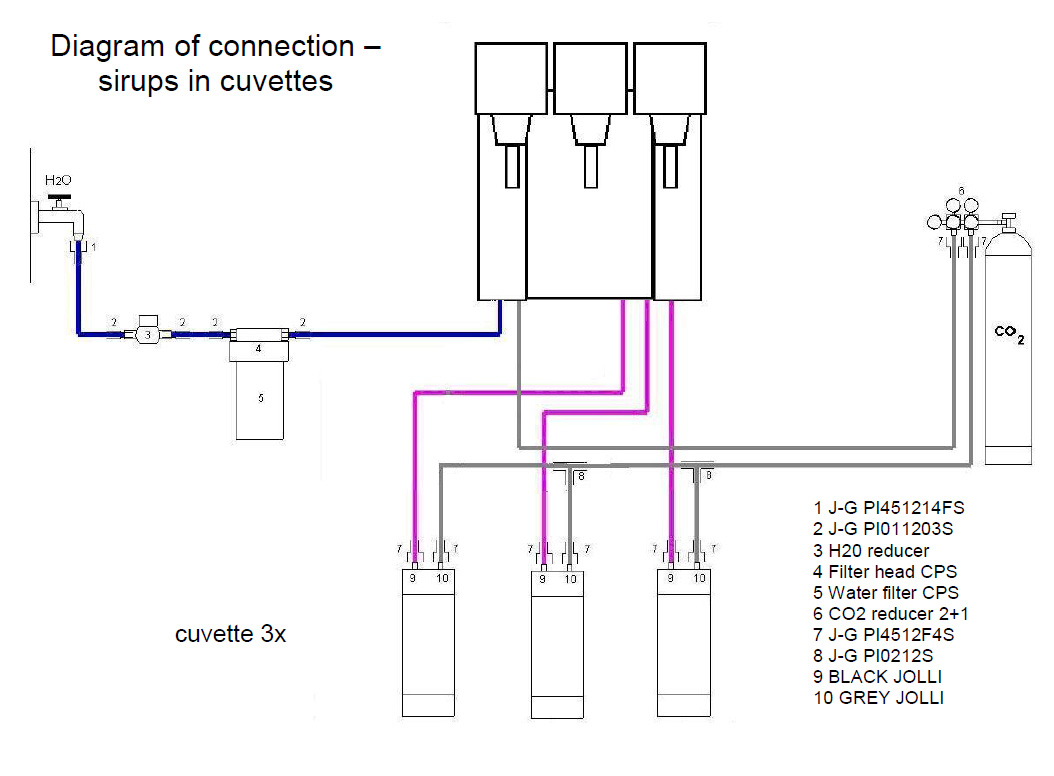

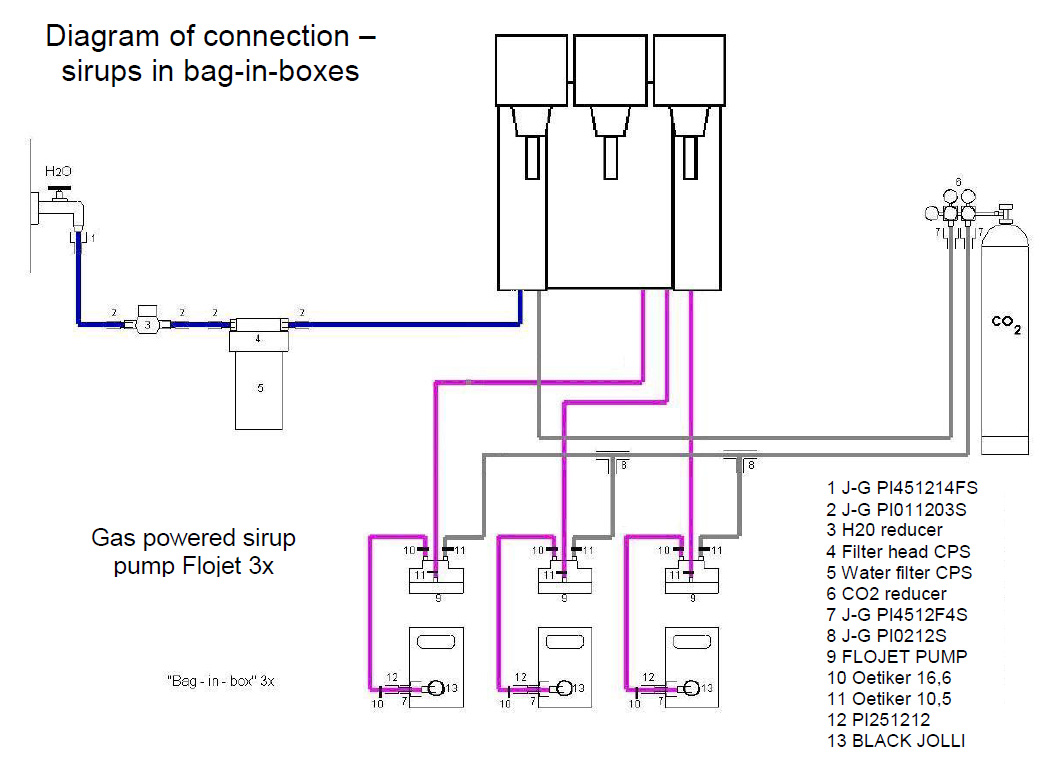

To connect the post-mix you need:

• Water line : water supply regulations – connection to a tap with a 1/2 thread (preferably within 5 m of the soda bar), the water at the inlet must meet the pressure and quality criteria
• Gas line : CO2 pressure cylinder
• Electricity : standard electrical outlet (within 1.5 m from the machine)
• Syrups : in bag-in-boxes or in cuvettes

For postmix, we recommend purchasing a set of accessories according to the used syrup package for its connection and operation!
