PBT-400 : Pallet Bin Tipper for boxes with fruit 400 kg

 5 670 excluding tax

PBT-400 Pallet Bin Tipper is a machine for easy unloading fruit from plastic or wooden box containers. Loading capacity 400 kg of fruits.

SKU: PBT-400 Category: Tags: ,


Description

PBT-400 Pallet Bin Tipper is a machine for easy unloading fruit from plastic or wooden box containers. Loading capacity 400 kg of fruits.

The PBT-400 tipper serves to emptying the standard box pallets with fruit. Pallet is placed to the tipper using a pallet lifting truck. After pressing the switch is pallete lifted and simultaneously tilted – this allows a gradual dosing of fruits into a fruit crusher or on a sorting table.

PBT 400 pallete bin tipper 02 - PBT-400 : Pallet Bin Tipper for boxes with fruit 400 kg - fme

Main features:

  • Made of stainless steel.
  • Hydraulic drive.
  • Manual operation.
  • Suitable for boxes of different dimensions.
  • For cargo up to 400 kg.





PBT-400 Technical description

For palletes     1200mm x 1000mm x 800mm
Maximal loading capacity     400 kg
Dimensions     1850mm x 1550mm x 1270mm
Height A     1270 mm
Height B     2450 mm
Weight     290 kg
Electric supply voltage     3/N/PE   ~ 400/230 50 Hz
Electric power source     1.5 kW





PBT-400 Pallete bin tipper - dimensions


Optional recommended accessories :

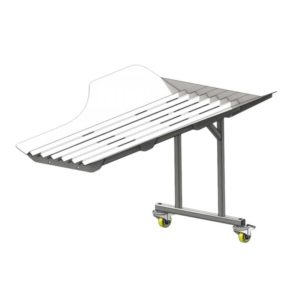

FST-1000 : Fruit sorting table

FST-1000 Fruit sorting table

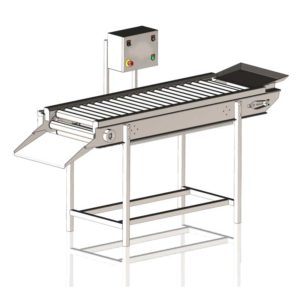

FSC-3000 : Fruit Sorting Conveyor 3000 kg/hr

FSC-3000 Fruit sorting conveyor 3000 kg/hr



Additional information

Weight290 kg
Dimensions1850 × 1550 × 1270 mm
