MXTP-700 : Mixing tank 700 liters with the agitator

The MXTP-700 mixing tank is a non-pressure stainless steel vessel with capacity of 700 liters which is equipped with the agitator, two drain valves and a stainless steel support. This device is designed for mixing and homogenizing liquids, or solids in liquids. We recommend the mixing tank to dilution and mixing of food and beverage concentrates, such as concentrates for the production of soft drinks, cider, fruit juices etc. It is equipped with the agitator rotation speed regulator and the filling level indicator.



The mixing tank is indispensable in the fruit beverage production process. It is supplied with a stirrer and stainless steel paddles whose speed is designed for perfect mixing of the liquid product with the ingrediences with minimising oxygenation.

Technical description and equipment :

• Stainless steel tank made of AISI 304 stainless steel
• Drain valve for clear product : DIN 11851 DN25 male + ø 20 hose connection
• Bottom drain valve for sediments : DIN 11851 DN25 male + ø 20 hose connection
• Washing ball for easy cleaning and sanitation
• Stainless steel support frame

Agitator kit (built in the stainless steel hatch):

• Motor : 220 V / 50 Hz motor with the switch
• Motor power : 0.18 kW
• German plug
• Speed reducer
• Stainless steel mashing blades
• Inspection hatch with a knob
• Stainless steel fill level indicator

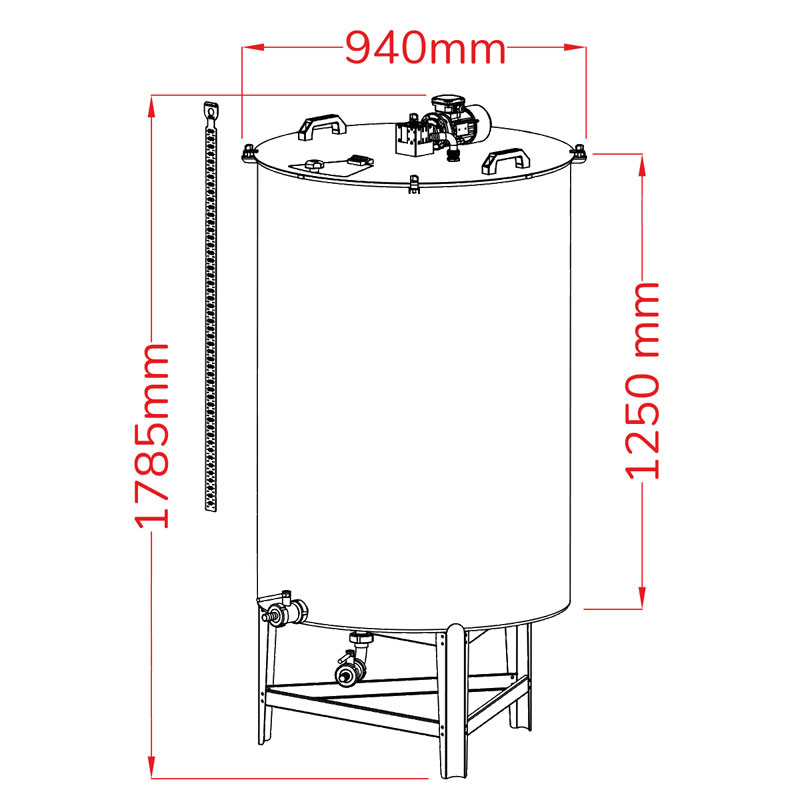

Dimensions:

Diameter : ø 85 cm + 20 cm valves
Complete height : 179 cm
