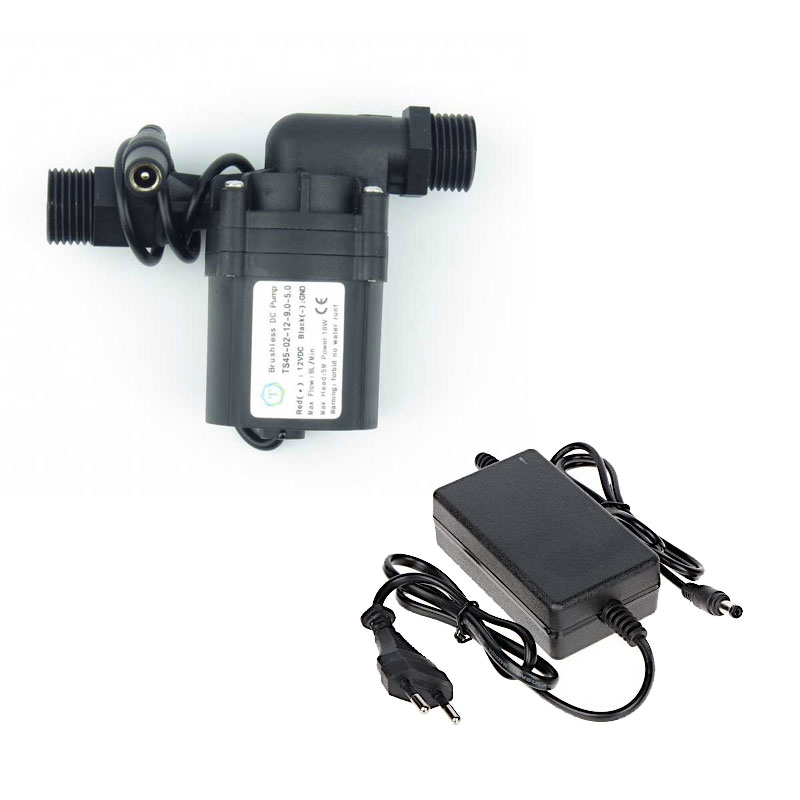

MGP-U12P18 : Magnetic pump 12V with a power of 18W suitable for clean drinks and liquids (temperature max. 35°C)

Small magnetic pump with power 18W and power supply voltage 12V, designed for use in the smallest breweries or beverage producion systems. The pumping-over beverages between tanks, during beer filtering process or cooled wort.

Technical parameters :

Performance : 18 W – 2000 rpm
Outlet :   BSP-M 1/2” / DN 15
Intake : BSP-M 1/2” / DN 15

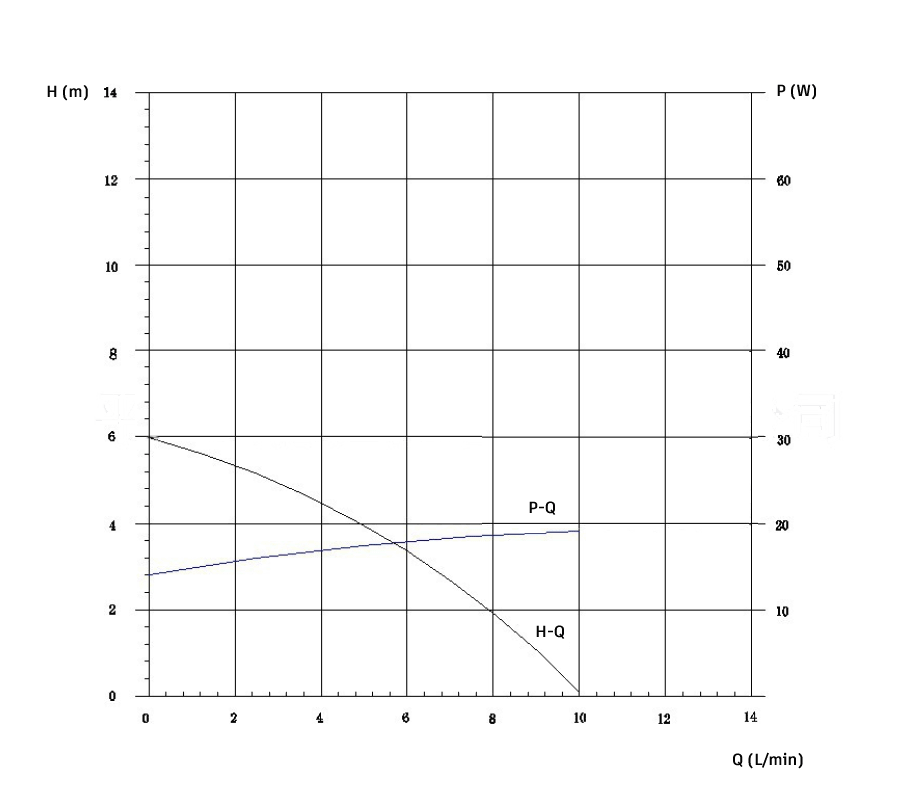

Max. flow range  9 l/min = 0.54 m3/h
Max. working pressure  0.5 Bar (displacement of 5 meters)
Max. liquid temperature  35 °C
El. connection DC 12 Volts ±10 % – Jack connector (Power supply adapter is not included)
Lifetime : min. 20000 hours
The pump is not suitable for pumping mash and other liquids with a higher density.

Recommended accessories :

MFI-100H95 : Mechanic filter 100 micrometers for 9,5mm (3/8″) hoses (t: -20°C up to 65°C)

HM-12FH8ID-SS : Stainless steel hose mandrel BSP 1/2″F with an external diameter of 8 mm
