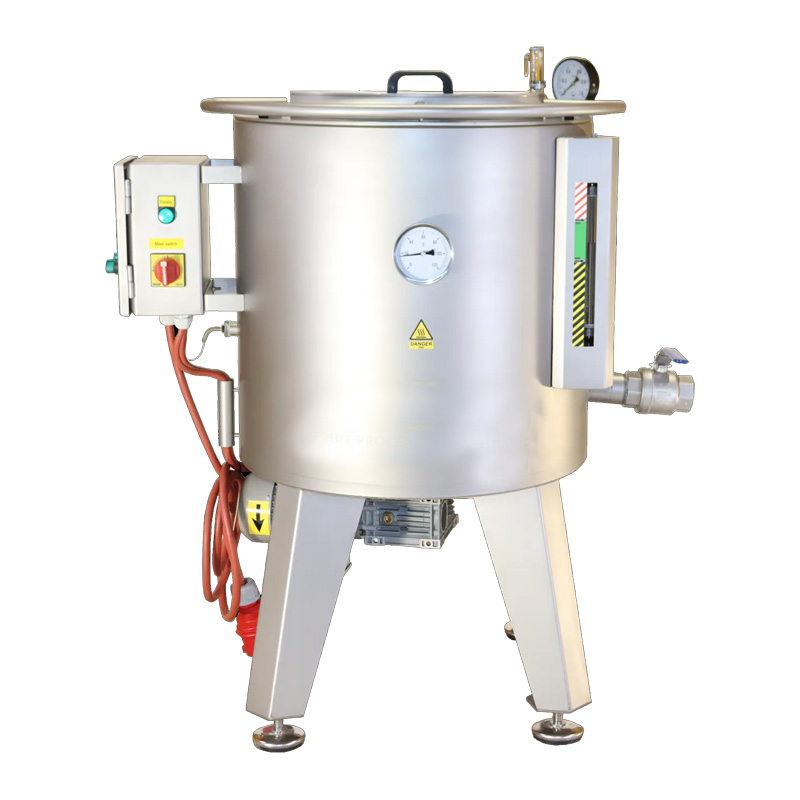

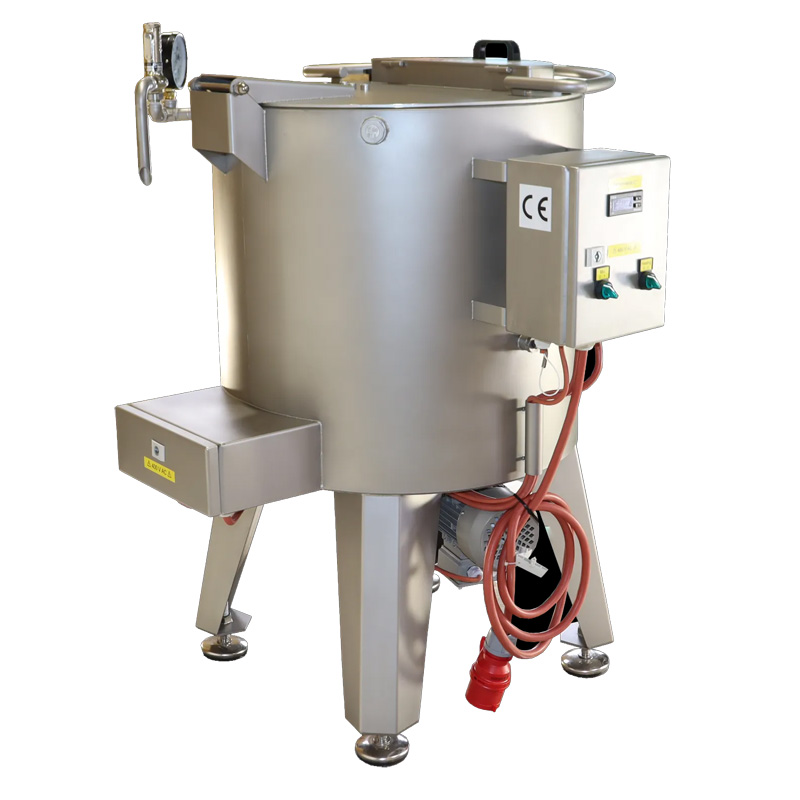

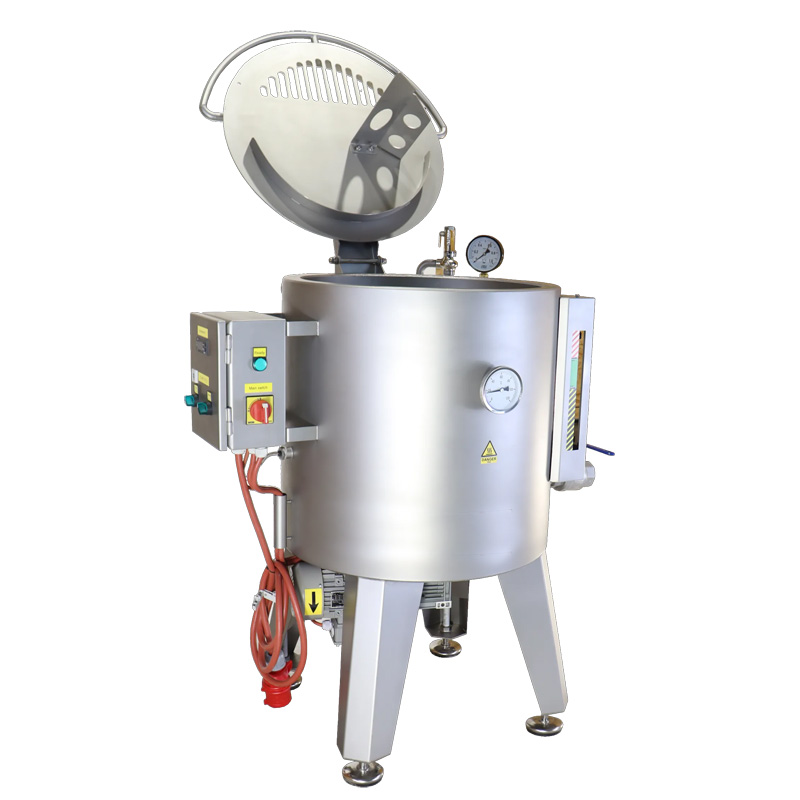

HTJC-200MG : Mixing-homogenizing tank / fruit jam cooker 200L

HTJC-200MG is a double walled mixing tank designed as a fruit jam cooker in which the heating media is glycerol for food. Can be used also for mixing and homogenizing other food material with low density in liquids.

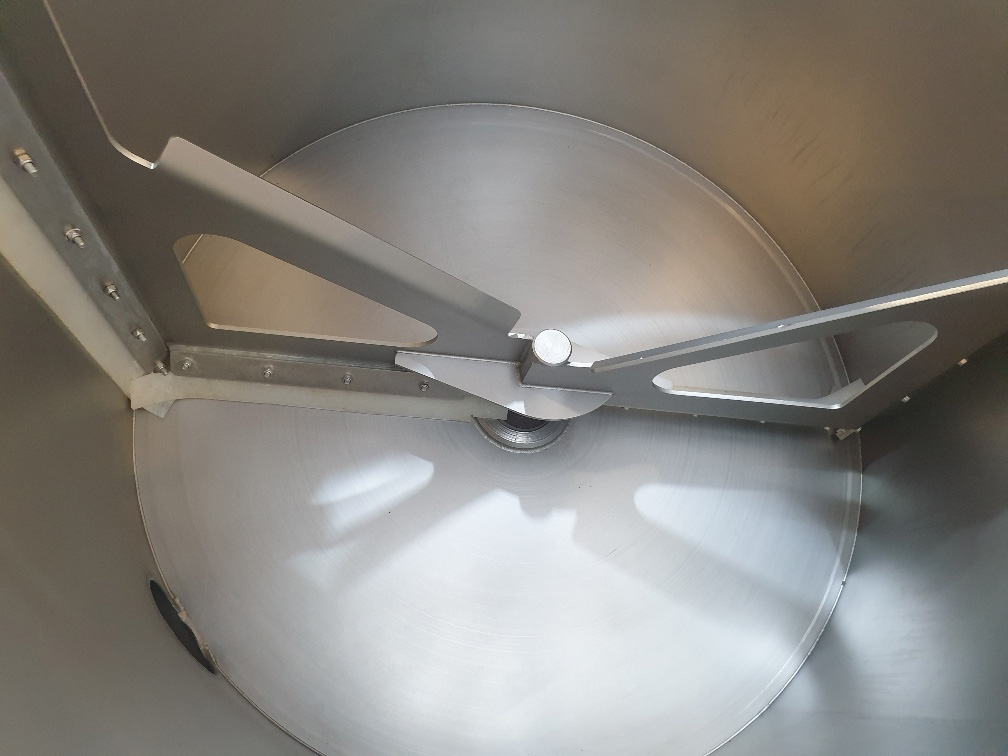

The machine has a build-in mixing unit, which ensures that the food materials do not stick. Bottom mixing motor with food grade silicone scrapers to prevent burning of the food material on the heated walls of the tank. The machine automatically controls the heating temperature. Heavy duty rubber machine feet. Automatic control system. It requires minimal maintenance.

HTJC-200MG has usable volume 200 liters and is made of stainless food steel of AISI 304 or AISI 316L (according to the selected version).

Technical details of the mixing-homogenizing tank 200 liters

• Usable volume : 200L
• Motor with the agitator : 0.55kW
• Agitator rotation speed : 12 rpm
• Maximal temperature : 140°C
• Electric demands: 18kW, 3ph 400V / 50Hz , 32 A
• Material: AISI 304 Stainless steel / AISI 316L Stainless steel (according to the selected version)
• Dimensions: 850x800x1200 mm
• Weight: 350 kg
• Double walled mixing tank / jam cooker in which the glycerol for food is used as heat transfer media
• IP65 certified electronics
• Automatic temperature control
• Easy to clean
• Requires minimal maintenance
• Pipe / hose connection: Ball valve 4″ DN 100 with female thread / Optionaly : Butterfly valve DN 100 DIN 11851
• Safety valve
• Filling level indicator

Glycerine as the heating medium

The heating medium with which the machine is filled consists of 80% pure glycerine and 20% water.
The heating jacket can be easily refilled with glycerine. There is a sealed connection point on the side wall through which anyone can top it up if necessary.
The machine is delivered in a filled condition (approximately for 85% of total cooling jacket capacity).
It cannot be filled completely (100%) because we must take into account the expansion range of water and glycerine.
No replacement of the glycerine after each use is required until it is not evapored more than 20% of entire volume – its lifetime is usualy approximaly 1000 working hours.

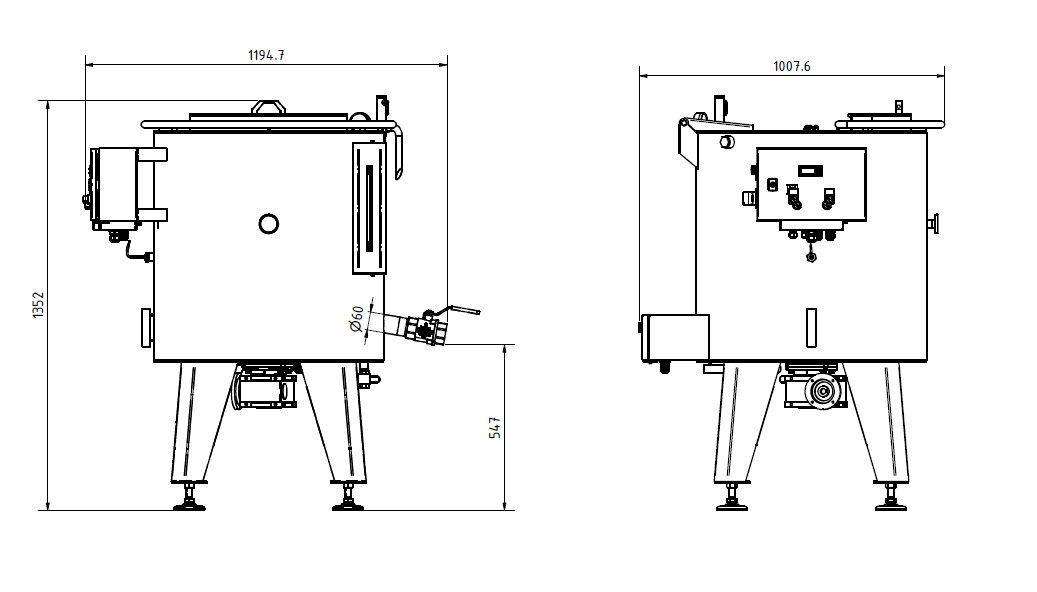

Dimensions :

Optional inner surface :

Optional equipment :
