Products » FPE : Fruit processing equipment » CFC : Fruit crushers » FWBC-4000MG : Fruit washing machine with brushers and grinder 4000 kg/hour

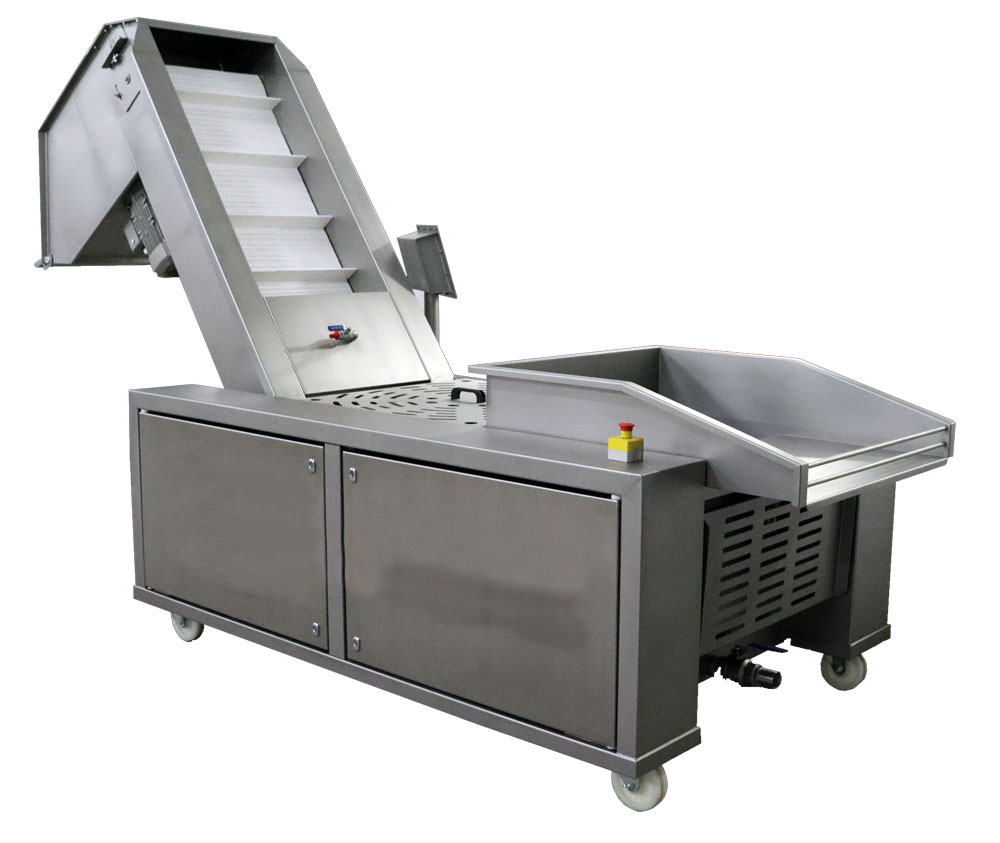

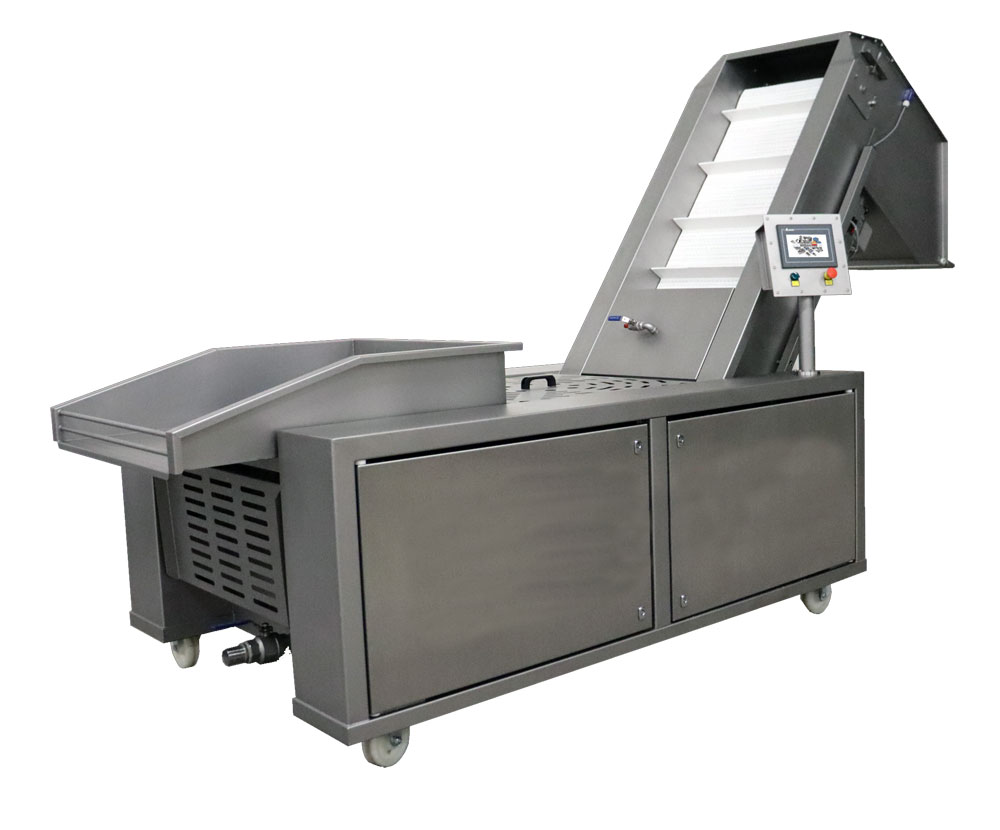

FWBC-4000MG : Fruit washing machine with brushers and grinder 4000 kg/hour

 16900 excluding tax

A combi multifunction machine includes two functionalities in one compact block : the fruit-rinser with rotable brushes and the fruit-crusher. Production capacity is up to 4000 kg of fruits (apples, pears …) per hour. Fruit is washed in the hopper with water and cleaned with rotable brushes. Then fruit goes to the crusher using the transportation belt. During the must production, the machine is designed to the rinsing and crushing of apples, pears or other fruit into small pieces, from which subsequently the fruit-press squeezes the fruit juice which is the starting intermediate for the production of fruit must or cider. Made in European Union.

Available on back-order

4% discount for ordering from 4 to 8 pieces. 8% discount for ordering 9 or more pieces.

Description

Print Friendly, PDF & Email

A combi multifunction machine includes two functionalities in one compact block : the fruit-rinser with rotable brushes and the fruit-crusher. Production capacity is up to 3000 kg of fruits (apples, pears …) per hour. Fruit is washed in the hopper with water and cleaned with rotable brushes. Then fruit goes to the crusher using the transportation belt. During the must production, the machine is designed to the rinsing and crushing of apples, pears or other fruit into small pieces, from which subsequently the fruit-press squeezes the fruit juice which is the starting intermediate for the production of fruit must or cider. Made in European Union.







Technical description :

– Capacity from 3000kg up to 4000kg per hour (apples, pears)
– Made of stainless steel AISI 304 / 1.4301
– Equipped with adjustable feet
– Central control cabinet
– Steppless speed control
– Optional rudeness of crushing
– Water vat capacity 550 liters
– Electric consumption  6 kW / 16 A
– Electrical connection  16A 3F 400V / 50 Hz
– Water consumption 120-240 liters/hour
– IP65 certified electronic
– Grinder with a massive crushing hammer (available for beetroot and quince)
– The grinder can be by-passed and turned, this way the machine is capable of process stone-fruits

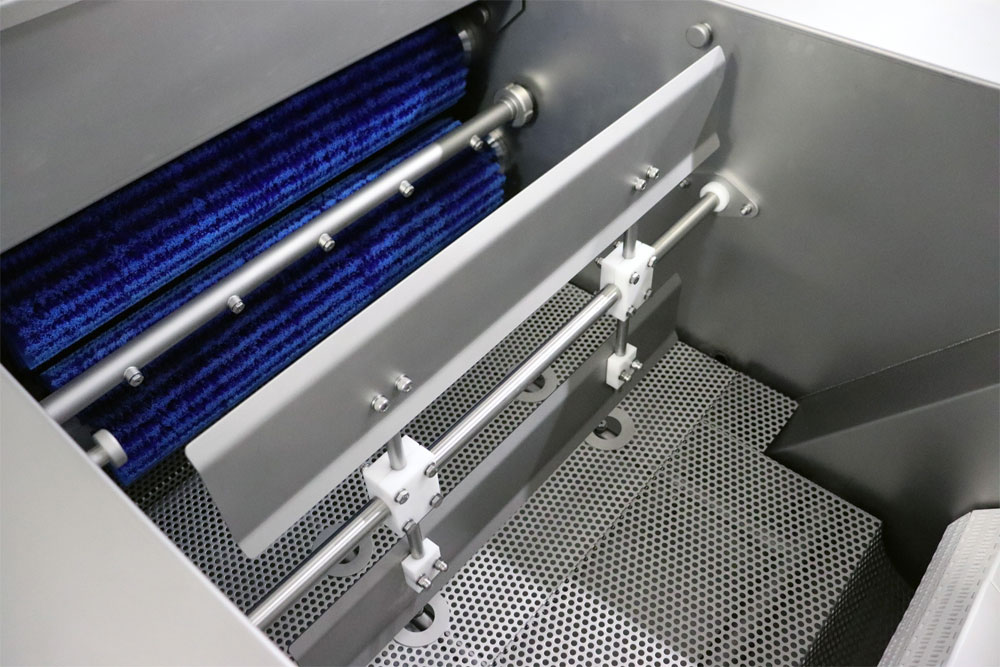

– 4 pcs of strong, counter-rotating brushes for the intense fruit cleaning
– Rotating paddles feeding the washed fruit to the elevator
– Requires minimal maintenance
– Adjustable belt speed
– Noise emission level … 60-70 dB



Dimensions :

– Fruit washing tank height … 910 mm
– Output height … 1300 mm
– Lenght … 3820 mm
– Width …. 1400 mm
– Height … 2200 mm
– Weight … 650 kg



Hose connections on the machine :

Description (purpose) Hose connection on the machine Intended for
Filling the tank with water Gardena quick connector 3/4″ male Hose 3/4″ with the Gardena quick connector 3/4″ female
Water spray inlet Gardena quick connector 3/4″ male Hose 3/4″ with the Gardena quick connector 3/4″ female
Water overflow outlet Hose nipple 1 1/4″ Hose 1 1/4″
Waste water outlet Hose nipple 2″ Hose 2″



The machine is delivered with the standard 15mm sieve. Optionaly available sieves : 5-8-10-15 mm (for demand).








Optional equipment :

Stop & Go system (membrane sensor and switch that allow to operate the fruit washer-grinder and the beltpress together ) € 890,-
Air blowing into the washing water for more intense fruit washing € 1290,-
Circulating pump for washing water € 1290,-
Silicone cover on the fruit output € 350,-
Dosing module – sliding door with end-switch, that allows the dosing of fruit mash from the fruit grinder safely to the belt press € 890,-
Elevation (non-standard higher fruit input and output for request) / price for each 100 mm € 350,-
Elevator’s paddle module € 35,-
Elevator’s link module € 26,-
Elevator’s pin between modules € 11,-
Spare brush for the washing module (set) € 590,-
Spare hammer for the fruit grinder € 450,-
Bearing for the elevator axis € 110,-
Frequency inverter for variable speed € 690,-
Sieve for grinder (with chooseable hole diameters 5-8-10-15 mm) € 49,-

Video



Additional information

Weight 900 kg
Dimensions 4000 × 1600 × 2250 mm
