FDS-500AP : Fruit De-stoner 0.55kW (machine to remove stones from fruit – up to 500 kg/h)

The FDS-800AP fruit de-stoner is a practical and functional machine for destoning cherries, apricots, plums, etc. Standard grill for cherries included.

Optional accessories :
– Second drum with holes Ø10 mm or with customized holes
– Stand with stainless steel chute



Grid and sieve for processing of cheries

Optional stand :



Optional sieves :

Sieve No. 1 : for processing of cherries

Sieve No. 2: for processing of apricots and plums



Technical specifications:

• Performance: 250-500 kg/h
• Electric power: 0.55 kW, 3-phase 400V / 50Hz, 16A, 3-phase motor
• Optionaly : 0.55 kW, 1-phase 230V / 50Hz, 16A, 1-phase motor
• Material: WNr. 1.4301, AISI 304 stainless steel
• Loading hopper : 450x400mm

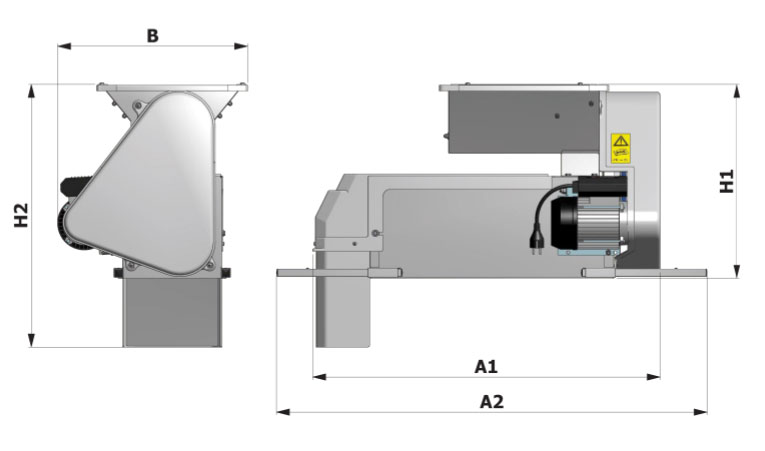

Dimensions / weight:

• Length: 930 mm
• Width: 510 mm
• Height: 515 mm
• Weight: 43 kg





---

Prices of the optional equipment :

Code	Description	Price
FDS05-1PH	Alternative 1-phase power supply : 1-phase 230V / 50Hz, 16A	€ 15,-
FDS05-SD1	Sieve/Drum No. 1 (with holes optimal for the cherry processing)	€ 380,- (1pc in price)
FDS05-SD2	Sieve/Drum No. 1 (with holes optimal for the apricot and plum processing)	€ 430,-
FDS05-SPS	Stand : Painted steel	€ 160,-
FDS05-SSS	Stand : Stainless steel	€ 350,-
