CWC-CMC1034MSS Main compact hose manifold 1x25mm>10x19mm with manometer and bypass valve – Stainless steel

The compact manifold CWC-CMC1034M is designed to connect of water cooler (with output/input  plastic hoses 2x 25mm hoses) with 10 cooling zones or branches with plastic hoses 16x 19mm which are connected to cooled tanks using flexible plastic pipes, saving you the cost of a fixed piping installation at the first stages of starting your winery or your brewery. This set is equipped with manometer for monitoring of pressure in the tank cooling system.

This  manifold set is compatible with all types of  coolers CWC-C and CWCH-M .

The number of tanks a manifold serves can be simply extended later as the winery / brewery expands.

This set consists of parts that are visible on the main picture.

All parts are made of stainless steel.

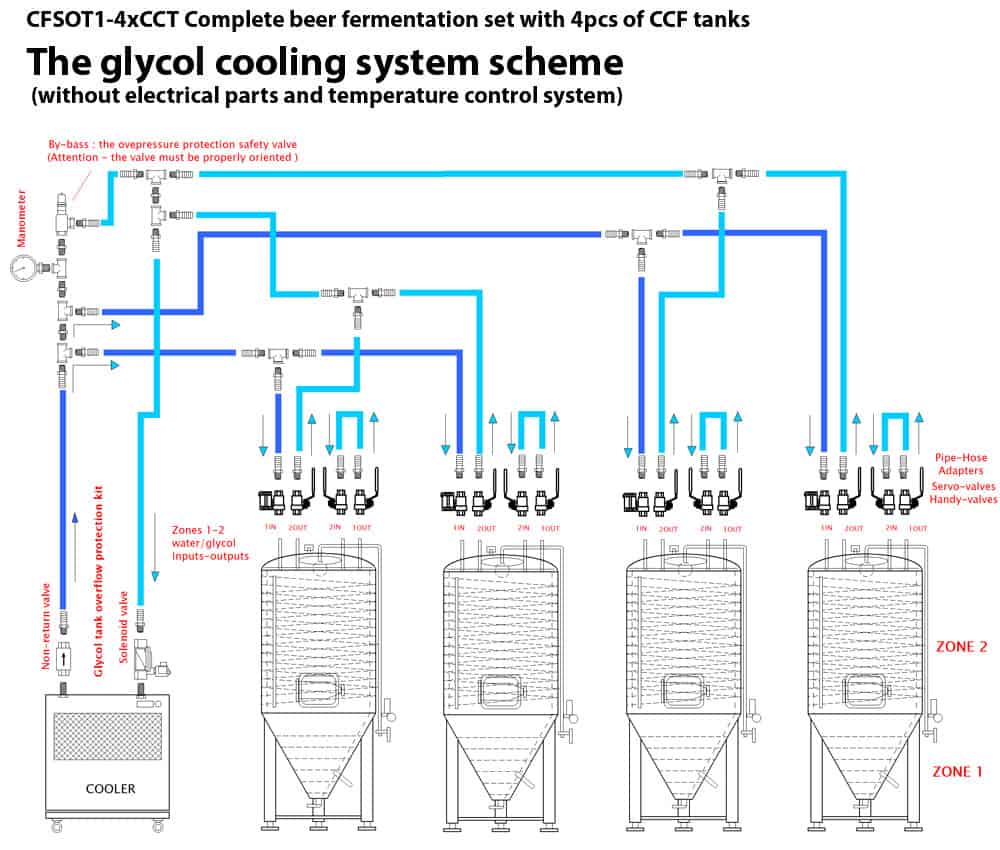

The example glycol tank cooling system with the CWC-CMC manifolds and 4 pcs of cooled tanks :
