Automatic electric hot steam-generator – the complete system on the frame
- with capacity 18 kW (11.7 – 23.4 kg of hot steam per hour) – if returned condensate is not reused
- with capacity 18 kW (13.5 – 27.0 kg of hot steam per hour) – if returned condensate is reused

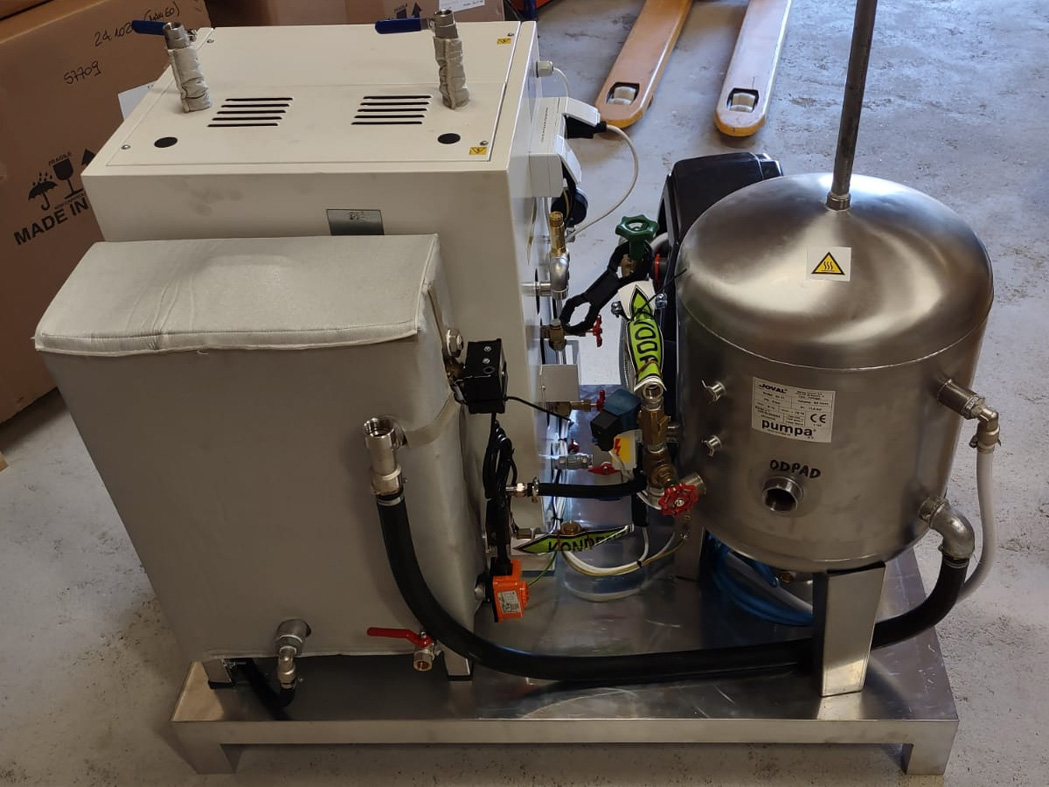

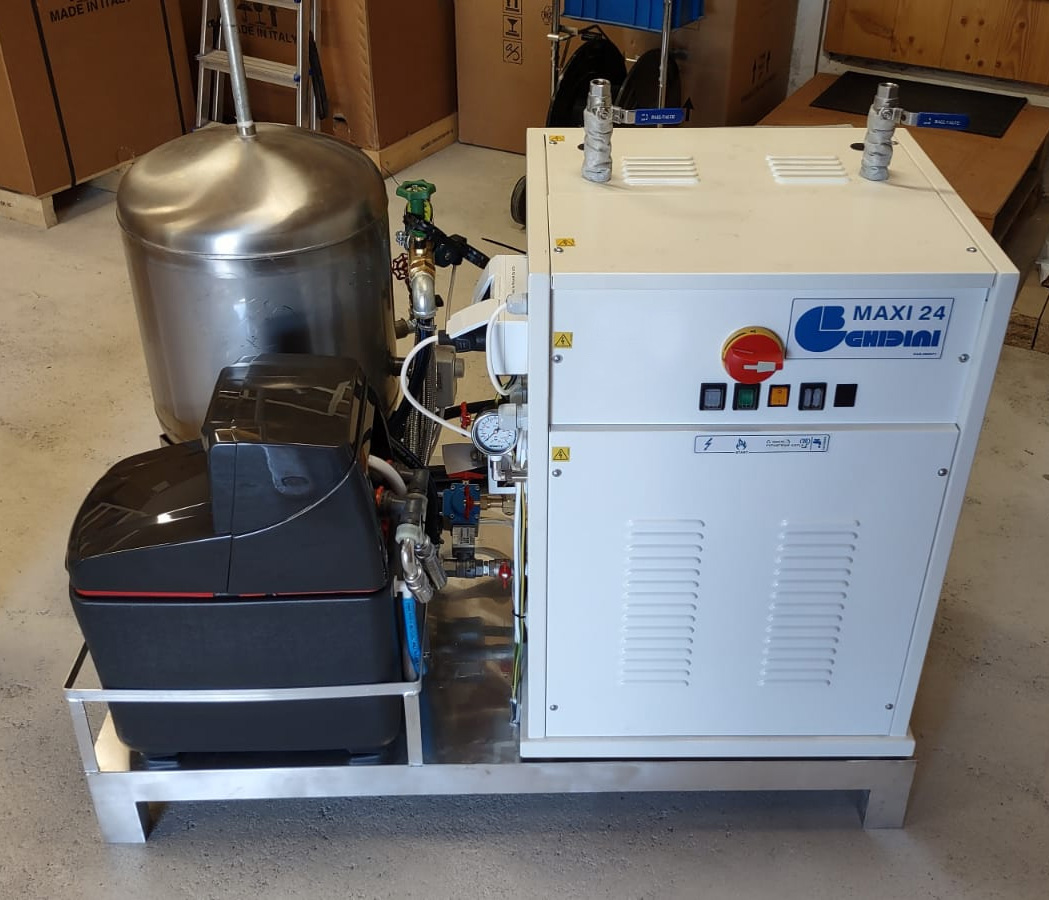

The compact build pre-assembled and tested steam generator with all recommended accessories. All is delivered on the stainless steel frame, with all internal connections, ready-to-use.
The compact system includes a complete water treatment, a condensation recuperation system and a boiler sludge draining system (cooling tank for desilting the steam generator boiler) .
This type of execution makes it possible to minimize both dimensions and on-site installation costs and start-up activities. Once it is set in its installation point, the whole equipment only needs to be connected to the essential utilities, such as electric power supply, steam output pipes and water distribution.
Regulation of the working steam pressure is adjustable in range from 1 to 4.5 or 7.0 bar (it depends on the version ordered).
This steam-generator is available with single or with two independent heaters (two independent heating elements). The steam-generator shell is manufactured in accordance to the current PED regulations.
Made in EU
Recommended use :
- Heating the wort brew machines – recomended for brewhouses with maximal usage volume 250 liters per one brew
- Heating the water, beverages or chemical solutions in the water tanks, CIP stations, boilers, pasteurisers etc.
- Heating the food processing machines
- Sterilization of the vessels, pipes, hoses, stainless steel kegs, filters, food production equipment, farmacy equipment … with hot steam
Parameters and accessories :
|Technical data||Model : MXSG-18CSF : GHIDINI MAXI-24 9-18kW + recommended accessories
|Capacity (basic model with one heating element 18 kW) – if the returned hot condensate is not reused||18 kW (up to 23.4 kg of hot steam per hour)|
|Capacity (optional model with two heating elements 2x 9 kW) – if the returned hot condensate is not reused||Switcheable : 9 kW or 18kW (up to 11.7 kg or 23.4 kg of hot steam per hour)|
|Capacity (basic model with one heating element 18 kW) – if the returned hot condensate is reused||18 kW (up to 27 kg of hot steam per hour)|
|Capacity (optional model with two heating elements 2x 9 kW) – if the returned hot condensate is reused||Switcheable : 6 kW or 12kW (up to 13.5 kg or 27.0 kg of hot steam per hour)|
|Pressure and temperature of outgoing steam (4.5 bar version)||From 0.3 bar to 4.5 bar / From 100°C to 155°C|
|Pressure and temperature of outgoing steam (7.0 bar version)||From 0.3 bar to 7.0 bar / From 100°C to 165°C|
|Power supply voltage and frequency (EU version)||3-phases 380-420V / 50 Hz|
|Power supply voltage and frequency (US version)||3-phases 220-240V / 60 Hz|
|Boiler capacity||55 liters|
|High temperature pump||0.55 kW|
|Electric heaters||1x 18 kW or 2x 9 kW (optionaly)|
|Safety overpressure valve||5 bar or 7.5 bar (depending on the version)|
|Water inlet||BSP 1/2″ (ET)|
|Condensate return (only if the condensate recovery set is included)||BSP 1/2″ (ET)|

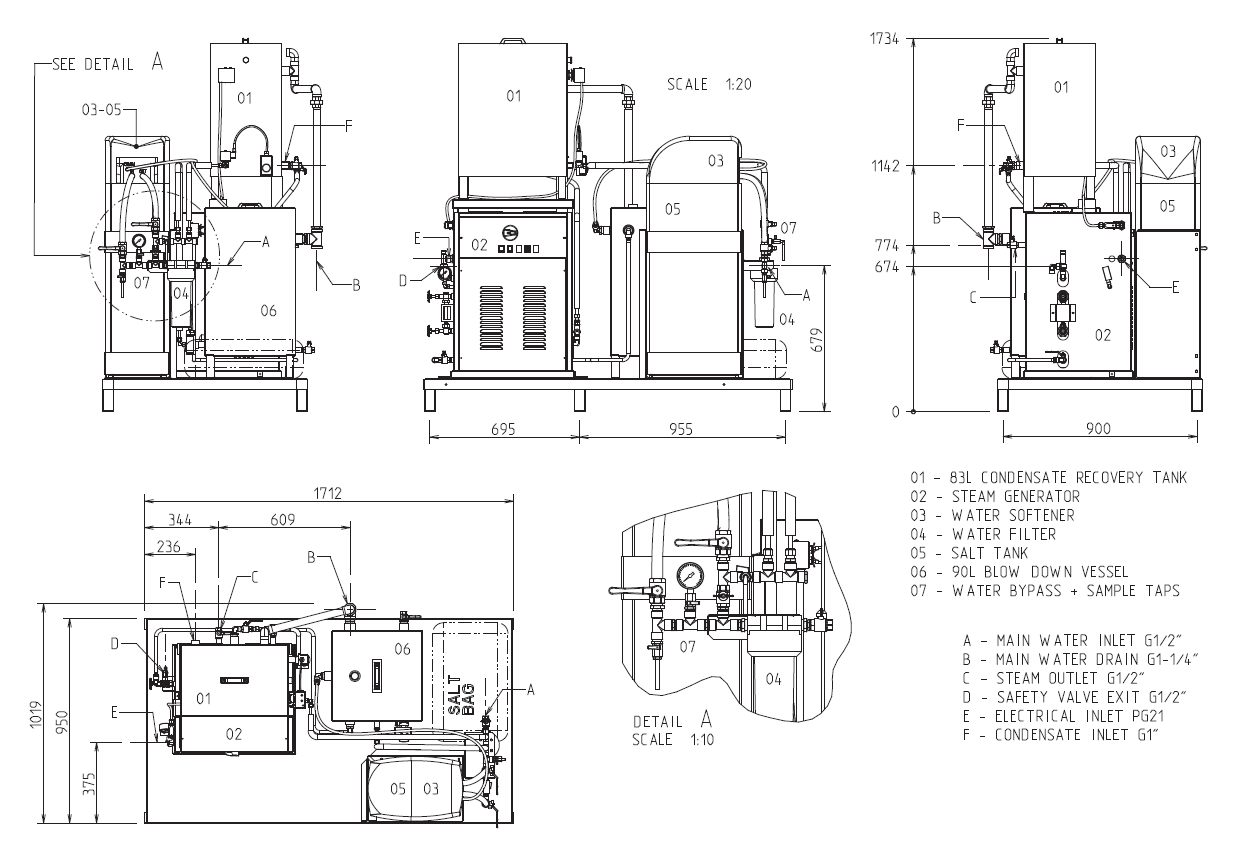

|Total dimensions (without the condensate recovery set)||L x W x H : 1712 x 900 x 1556 mm|
|Net weight||200 kg|
|Gross weight (without the condensate recovery set)||240 kg|
|Packing dimensions with the palett (without the condensate recovery set)||1800 x 1000 x 1750 mm|
Optional equipment :
|CT-MX24 : Stainless steel tank AISI 304 for returned condensate 45L, including level sensor, solenoid valve and thermostat (for MAXI 20/40/60)||included|
|CT-MX24S : Stainless steel tank for returned condensate 45L, including level sensor, solenoid valve and thermostat | all components in contact with water are made in stainless steel AISI 304 (for MAXI 20/40/60)||€ 1980,-|
|CTMK-MX24 : Kit to mount the condensate recovery tank above the steam generator (for MAXI 24)||included|
|SB304-MX24 : Steam boiler in stainless steel AISI 304 (for MAXI 24)||€ 1745,-|
|CSW304-MX24 : All components of the steam generator in contact with water in stainless steel AISI 304 (for MAXI 24)||€ 4200,-|
|TSD-MX24 : Cooling tank with the boiler sludge draining system (for MAXI 24)||included|
|ASR-MX24 : Automatic sludge removal (for MAXI 24)||€ 790,-|
|DHS-MX24 : Double heating system – two switcheable independent heating elements 2x 9 kW (for MAXI 24)||€ 290,-|
|WTS-MX24 : Water treatment system – necessary to prevent damage to the machine by mineral deposits (for MAXI 24)||included|
|SKID-MX24 : The complete compact solution on the frame : storage tank + condensate tank + water treatment system + stainless steel frame + all pipe connections (for MAXI 24)||included|
Diagram of a closed-cycle steam circuit (return condensate is reused):
SG – steam generator
SA – steam appliance
CRT – condensate recovery tank
1 – gate valves
2 – condensate dischargers
3 – check valves
Warranty : 12 months (for all parts) – A customer with help of our remote support identifies a bad component and then send it to us. Then a spare part will be sent to the customer.
On-site repair services are not included.
Delivery time : from 3 days to 6 weeks (according current store status)
