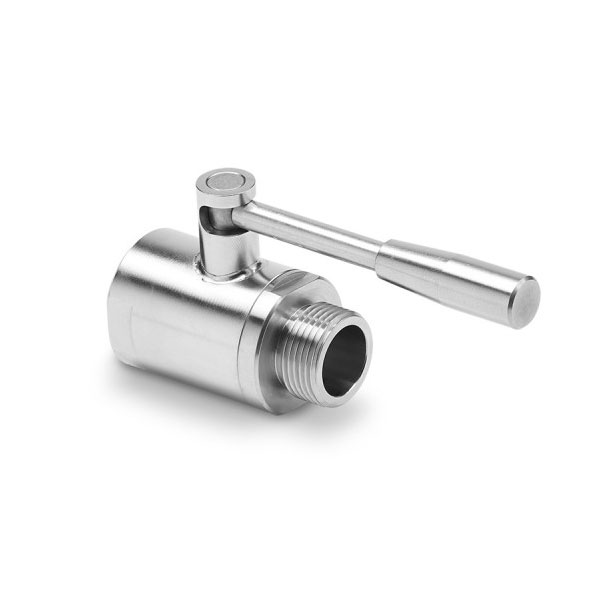

HBA-SBV-1FM : Ball valve with connections BSP 1″ female, BSP 1″ male

Stainless steel ball valve 1″ with two pipe connections : BSP 1″ female, BSP 1″ male .  For use with simplified tanks.

The price is for one piece of the valve.

Technical parameters :

• 1st side connection – Standard BSPP 1″ female
• 2nd side connection – Standard BSPP 1″ male
• Type: Ball valve DN25
• Material: Stainless steel 1.4301 (AISI 304)
• Valve control: manual, direct control
• Internal seal material: PTFE ( -50 ° C to 180 ° C)
• Operating temperature (recommended range for long time use) : -20 ° C to +150 ° C
• Maximal sanitation temperature: 130 ° C (maximally 25min)
