ESG-60SS : Electric sterile steam-generator 42kW / 60kg/hr / 2-9bar (Stainless steel)

 45000 excluding tax

Electric and automatic hot steam-generator with heating capacity 42kW (60 kg of hot steam per hour), steam pressure from 2 bar up to 9 bar. Certificated for sterile pure steam – for direct contact with food and beverages. All parts which comes in contact with food are made of stainless steel. The electric steam generator is ready to be connected to steam appliances that require a direct contact of sterile steam with food or beverage.This level meets the standards EN 1672-2 and EN 285 .

Description

Electric and automatic hot steam-generator ESG-60SS

with heating capacity 42kW (60 kg of hot steam per hour), steam pressure from 2 bar up to 9 bar. Certificated for sterile pure steam – for direct contact with food and beverages. All parts which comes in contact with food are made of stainless steel. This level meets the standards EN 1672-2 and EN 285



This electric pure steam generator combines the most modern technical solutions used in this type of devices. All pressure elements in contact with feed water or clean steam are made of hygienic materials, mainly high-grade AISI 316L (1.4404) and AISI 316Ti (1.4571) stainless steel.

The high purity of the steam is also ensured by automatic desalination and desludging of the pressure system, and the design of the evaporator with a separating dome on top increases the dryness of the steam.

The software we have created to operate the device, diagnose the operating status, record the history of process parameters and the touch operator panel allow for quick and intuitive operation.

The materials and components of the highest quality used for the construction as well as the innovative design of the device ensure this model with very high reliability and low operating costs.

The ESG-60SS device is also characterized by very high aesthetics, and the structure and housing are made of high-quality AISI 304 (1.4301) stainless steel. This allows the device to be used in areas that require special hygiene.

The ESG-60SS Electric steam generator includes two innovative design solutions covered by patent protection.

The model ESG-60SS is certified by TUV Rheinland for compliance with standards EN 285 and EN 1672-2.



Made in EU



Recommended usage :

  • Sterilization of kegs or bottles in using with machines designed to cleaning and filling of the kegs and bottles
  • Sterilization of vessels, pipes, hoses and food equipment or farmacy equipment by hot steam




Technical parameters :

Type ESG-30SS ESG-60SS ESG-90SS ESG-120SS
Parameter Unit
Saturated steam output capacity kg/h 31 63 94 126
Working pressure * (standard) bar 2.0 – 4.0 2.0 – 4.0 2.0 – 4.0 2.0 – 4.0
Pressure on the safety valve * (standard) bar 5.0 5.0 5.0 5.0
Working temperature * (standard) °C 5-152 5-152 5-152 5-152
Maximal allowed temperature * (standard) °C 160 160 160 160
Working pressure ** (optionally) bar 2.0 – 9.0 2.0 – 9.0 2.0 – 9.0 2.0 – 9.0
Pressure on the safety valve ** (optionally) bar 10.0 10.0 10.0 10.0
Working temperature ** (optionally) °C 5-180 5-180 5-180 5-180
Maximal allowed temperature ** (optionally) °C 184 184 184 184
Boiler capacity *** liters 26 26 61 61
Heating power kW 21 42 63 84
Number of work stages 1 2 2 2
Power supply (connected load) kW 24 45 66 87
Electric voltage supply V 400 3~ N+PE 400 3~ N+PE 400 3~ N+PE 400 3~ N+PE
Dimensions and weight
– length A / A1 ( ±10 mm ) mm 770 / 840 770 / 840 770 / 840 770 / 840
– width B / B1  ( ±10 mm ) mm 840 / 850 840 / 850 940 / 950 940 / 950
– height C / C1 ( ±10 mm ) mm 1550 / 1800 1550 / 1800 1600 / 1850 1600 / 1850
Weight kg 230 250 270 300



Commentary :

* – Values are valid for the steam generator with the standard equipment – equipment is fitted and set to pressure selected from the range.

** – Values are valid for the steam generator with the optional equipment – change of settings require readjustment and/or replacement of some components. Will be priced individually for demand.

*** – Boiler capacity does not apply to the water supply reservoir capacity



Other parameters and accessories :

  • All inner parts are made of stainless steel
  • Stainless steel cabinet with the status display
  • Made in accordance with standards EN 1672-2 and EN 285.
  • Water inlet G 3/8″ male
  • Steam outlet G 1/2″ male
  • Gross weight (packaging included) 280 Kg



The main advantages of the ESG-60SS steam generator:

  • high steam purity
  • flexible performance
  • easy and intuitive operation
  • touch panel controller
  • high durability of the device
  • high quality components
  • fully automatic operation
  • mobility (transport wheels)
  • ease and speed of assembly
  • compact design
  • small dimensions
  • easy access to the interior of the cabinet
  • solid and durable construction



Warranty : 12 months

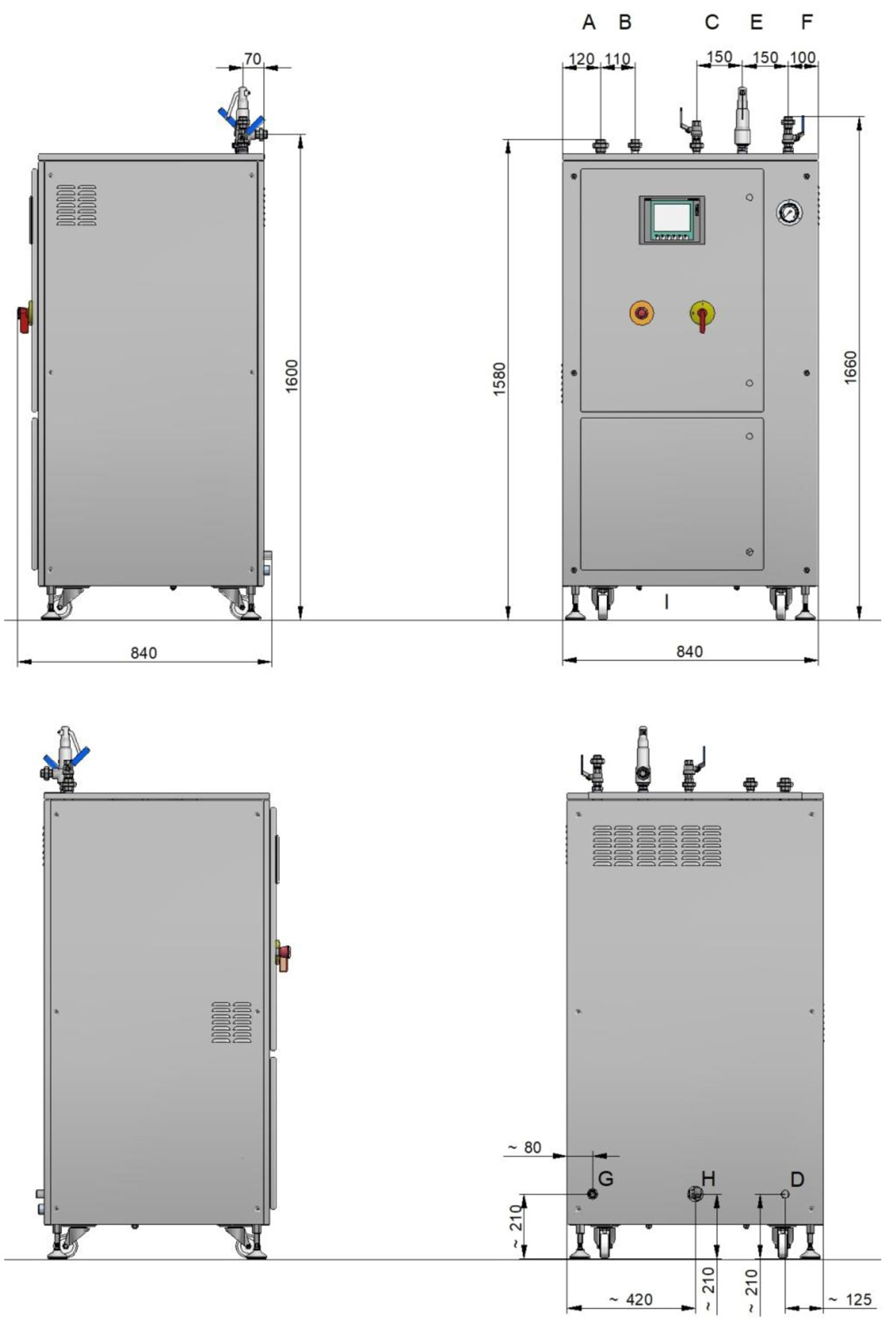

Dimensions and list of connections :



List of connections :

Connector Description Connector type Note
A Tank vent GZ ¾” (pipe union)
B Condensate return GZ ½” (pipe union)
C Water inlet GZ ½” (pipe union)
D Valve to desilting GW ½” (internal thread)
E Safety overpressure valve GW ½” (pipe union)
F Working steam valve GW ½” (pipe union)
G Overflow and drain of tank GW ¾” (pipe union)
H Electric supply Terminal block (connector on bus)
I Earthing M10 screw

Optional accessories

Description : Price :
ESGSS-ADS : Automatic desilting system € 3950,-
ESGSS-DAT : Stainless steel cooling tank for desilting with aftercooling € 1190,-
ESGSS-WT60 : Water treatment system HONEYWELL / RESIDEO BRAUKMANN € 950,-


Delivery time :

Usualy 9-14 weeks after 1st payment

Payment conditions :

60% after ordering, 40% before delivery

Warranty :

12 months since delivery (does not apply to consumables such as heaters, contactors, valves …). The supplier reserves the right to assess each complaint individually. The complaint is filed at the place of the seller’s registered office.



Additional information

Weight 280 kg
Dimensions 1200 × 800 × 1980 mm
