Description

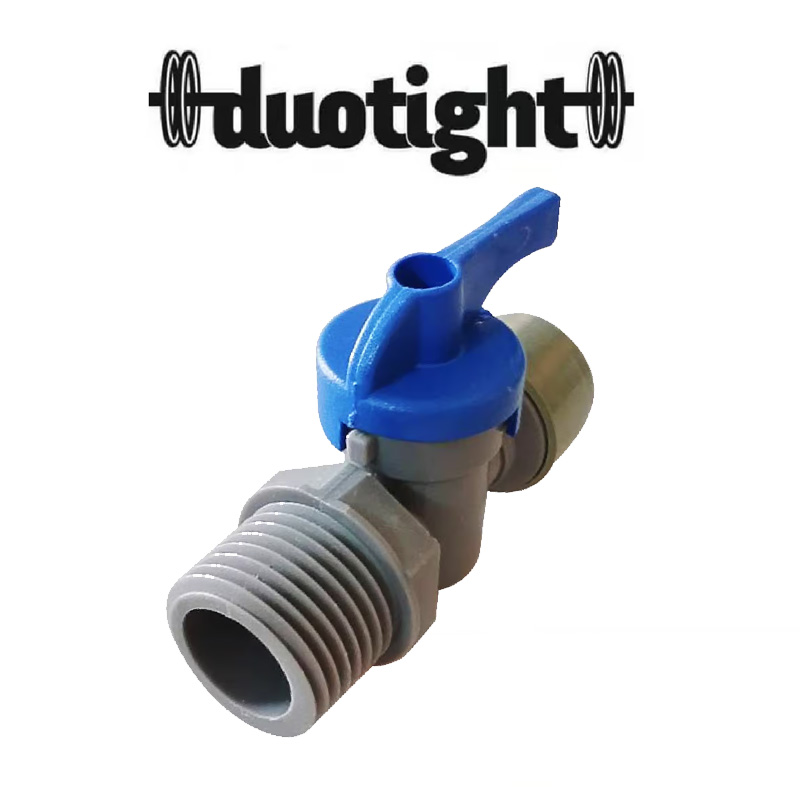

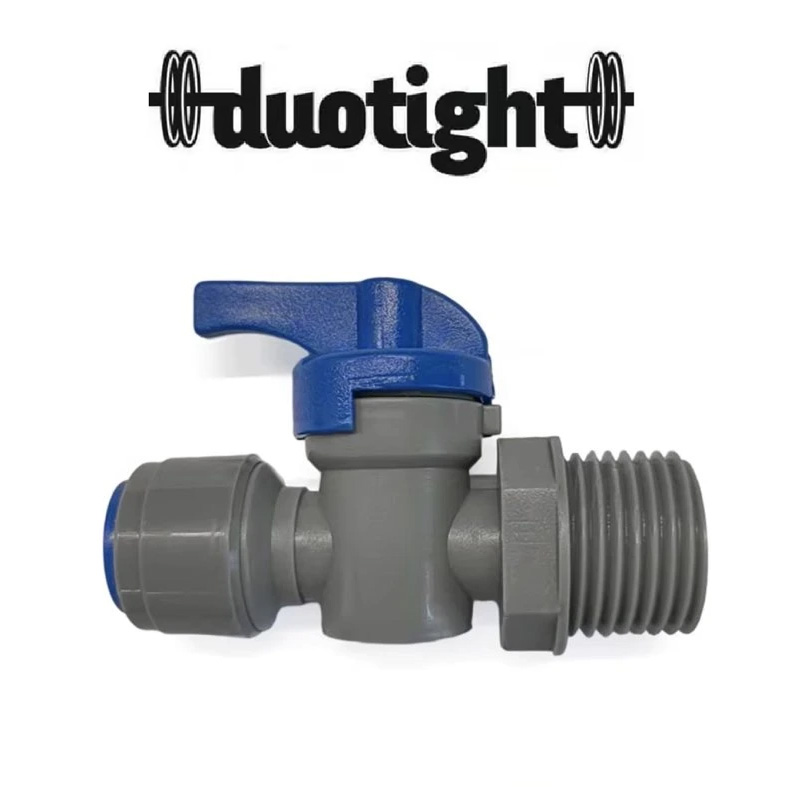

DuoTight plastic valve with quick connection between the BSPP 1/2″ male thread and hose (flexi pipe) D=9.5mm (3/8″).
Material : Made out of Food Grade Plastic. The material is suitable for contact with food (according to EC No. 1935/2004 and EU No. 10/2011)
Producer : Kegland / Duotight
The Duotight quick pipe connection system :
Kegland Duotight quick couplings use a unique double sealing system using two EPDM O-rings in each connection. This quick coupling is ideal especially for soft hoses such as EVABarrier, Rehau and similar flexible hoses.
Recommendation: For best function, we recommend using with soft hoses such as EVABarrier or Rehau. With hard PE hoses, removal from the quick coupling may be more difficult and the hose surface may be damaged.
Technical parameters :
| Material | Food Grade Plastic (Polyethylene, Acetal Copolymer, Polybutylene Barrier Pipe, NBR, EPDM) |
| C1 connection | Pipe coupler with the BSPP 1/2″ male thread, flat end with the gasket ring (The inner G-thread usual for connection of water pipes) |
| H2 – hose connection | Hose Quick Coupler for a plastic hose (flexible pipe) with outer diameter of 9.5 mm (3/8″) |
| Kegland code | KL07375 |
Difference between the BSPP and the BSPT thread :
