Description
Mobile electric steam generator with output capacity of 32 kg/hr
with power capacity of 24 kW (up to 36 kg of hot steam per hour), steam pressure from 2 to 6 bar, the integrated water tank 20 liters
The steam-generator shell is manufactured in accordance to the current PED regulations (Pressure Equipment Directive 97/23/CE).
Made in EU
General description :
The mobile steam generator with the heating capacity of 24 kW is conceived for the production of hot steam which is needed for cleansing and steam sterilisation of stainless steel tanks, barrels, pipe systemsand fittings, filters and beverage filling units. The steam generator is suitable also for the heating of other equipment if they are equipped with the steam heat exchangers. Maximal operation pressure of steam is 6.0 bar (temperature of 165°C) . Production capacity is approximaly 20 kg of steam per hour.

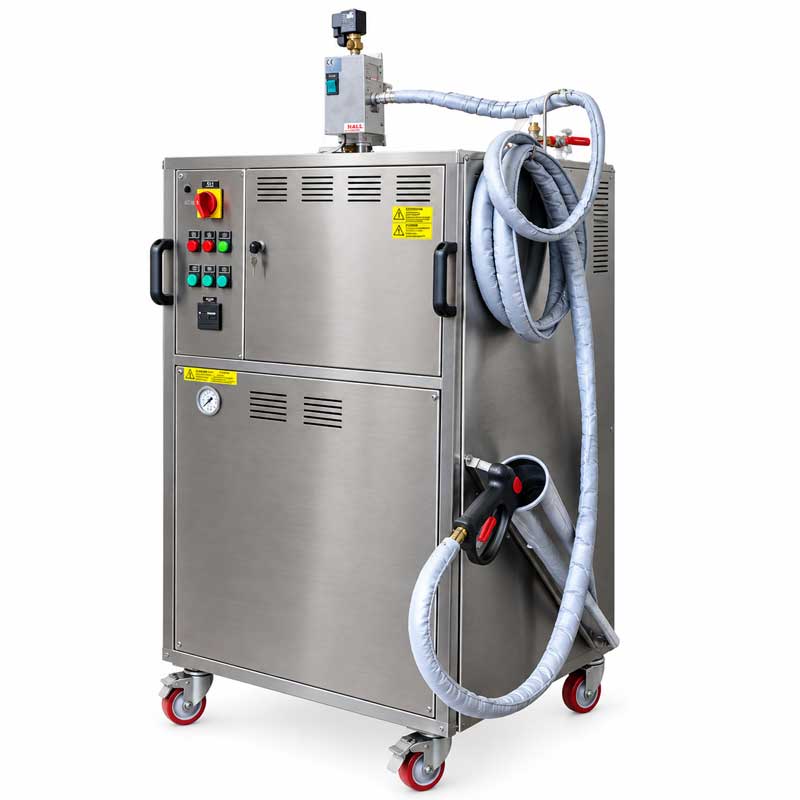

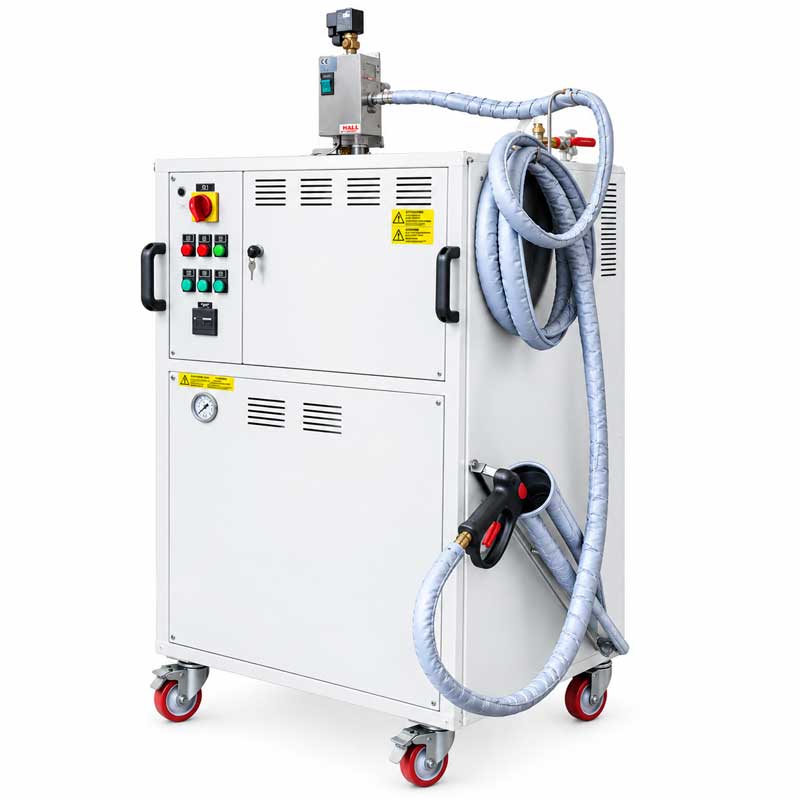

The steam production unit is made of carbon steem (optionaly with the stainless steel outer sheets in the inox version) and it is designed as a mobile device due to its wheels and a handle. This equipment is perfectly suited for small wineries, breweries and other beverages producers.
Water from the 20L integrated water tank is feeded into the steam generator´s reservoir (with capacity of 20 liters) is heated with the electric heating spiral up until steam is created.
The heating-up time takes about 15-20 min.
Operation time with one batch of water is approximaly 1 hour.
The integrated water tank can then be re-filled with water and re-heated the water to continue its operation.
We recommend to use the steam generator only with soft water (or destiled water) to avoid creation of mineral stone on the heating spirals. When using regular, unsoftened water, it is necessary to regularly remove limescale with for this purpose designated chemical agents.
Technical features :
| Power supply | 380-420 V – 3Ph – 50 Hz |
| Boiler capacity | 28 litres |
| Steam pressure | 0.5 – 6.0 bar |
| Steam temperature | 165°C max. |
| Boiler heater capacity | 24 kW |
| Sound intensity level | < 70 dB(A) |
| Working temperature | + 5 ÷ + 80 °C |
| Working humidity | 90 % max. |
| Temperature for storing | -20 ÷ +50 °C |
| Power cable length | Not included |
| Material of the inner parts (steam boiler, pipes, valves) | Carbon steel (Standard version / Inox version) |
| Material of the outer parts (outer sheets) | Painted carbon steel (Standard version) / Stainless steel (Inox version) |
| Net dimensions | 500 x 500 x 950 mm |
| Net weight | 130 Kg |
| Overall dimensions (packaging included) | 800 x 800 x 1250 mm |
| Gross weight (packaging included) | 150 kg |
Warranty : 12 months
Optional equipment :
Product code : |
Photo : |
Description : |
Price : |
| MXSG-H3M |  |
3m steam hose | On demand |
| MXSG-SNA |  |
Short Gun Nozzle (Short Nozzle Gun) | On demand |
| MXSG-SNB |  |
Short No-gun Nozzle (the gun without long nozzle) – without the steam hose / with the 5m steam hose | On demand |
| MXSG-SNC |  |
Long Gun Nozzle (with the gun) for steam hose | On demand |
| MXSG-SND |  |
Long Nozzle (without the gun) | On demand |
