ACO-780-200SO : Oil screw air compressor 46.8 m3/h (780 l/min) with pressure tank 200 liters, with air dryer

 5990 excluding tax

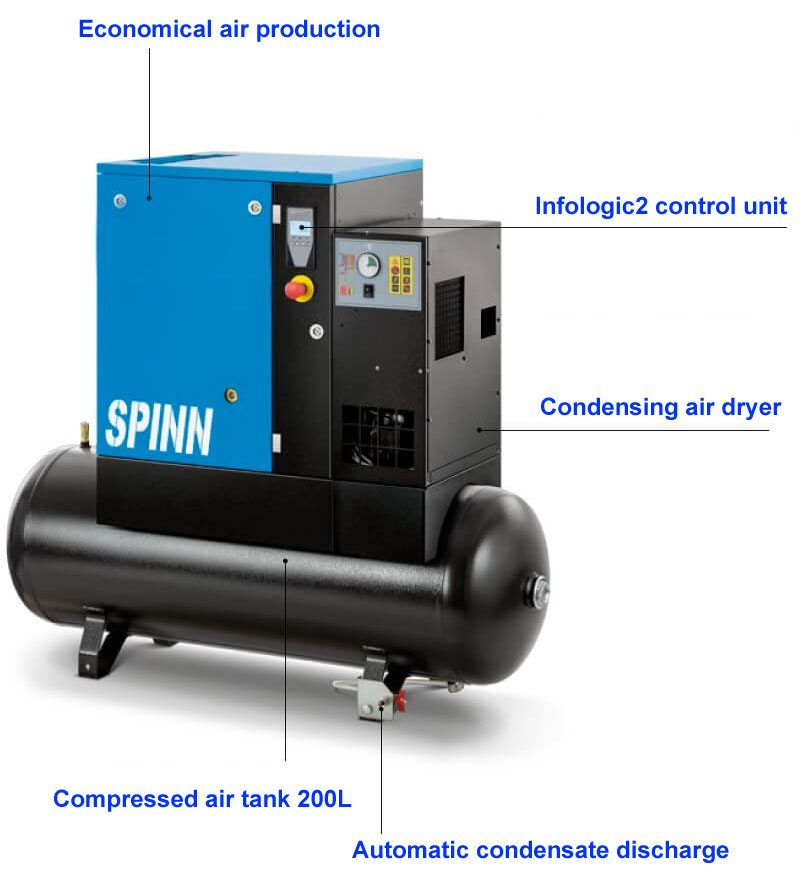

Revolutionary small screw compressor with an input of 5.5 kW in the concept of traditional piston compressors with a pressure vessel of 200 l. The maximum pressure at the outlet is 10 bar at an air flow of 780 l/min. COOL condensing dryer with dew point +5 °C, electronic condensate discharge and digital PDP-display. Simple maintenance after removing the cover. Suitable for constant intake of compressed air with up to 30% energy savings.

SKU: ACO-780-200SO Category: Tag:

Description

Print Friendly, PDF & Email

The oil screw air compressor 5.5 kW with production capacity of 46.8 m3 per hour

Revolutionary small screw compressor with an input of 5.5 kW in the concept of traditional piston compressors with a pressure vessel of 200 l. The maximum pressure at the outlet is 10 bar at an air flow of 780 l/min. COOL condensing dryer with dew point +5 °C, electronic condensate discharge and digital PDP-display. Simple maintenance after removing the cover. Suitable for constant intake of compressed air with up to 30% energy savings.





Technical specification of the compressor

Main advantages :

  • V-belt transmission
  • Practical design with 200 liter air tank and condensation dryer
  • COOL condensation dryer with dew point +5 °C, electronic condensate discharge and digital PDP display
  • Electronic control unit Infologic2
  • Output via BSP 3/4″ pipe threaded connector
  • Pressure regulator included in delivery
  • Intended for craft businesses and workshop operations with demands for continuous operation of the compressor
  • Air container with a volume of 200 liters with a ball valve for convenient draining of condensate
  • Two front wheels with brakes significantly increase the stability of the machine and improve handling
  • Service intervals 2000-4000-6000 MH

Easy installation and maintenance thanks to service videos available via the web application after scanning the QR code from the pressure vessel.

We provide a standard warranty period of 2 years for the compressor, with the option of extending it to 5 years, and a 10-year warranty against rusting of the pressure vessel.

Technical parameters :

Compressor type Screw air compressor
Pressure in output 10 bar
Suction capacity 780 l/min
Output capacity 46.8 m3/h (780 l/min)
Pressure tank volume 200 liters
Pressure air hose connection BSP 3/4″
Motor power 5.5 kW
Supply voltage 400V / 50Hz / 3-phase
Lubrication Oil
Noise 61 dB – Lwp(4m)
Dimensions 1 430 × 600 × 1 260 mm
Weight 210 kg
Accessories Pressure regulator, wheels, massive motor cover, air dryer, electronic control unit
Motor Electric
Drive Direct
Air dryer unit Yes
Air filtration unit No
Frequency converter No
Automatic condensate discharge Yes
Power  FAD (max.) 46,8 Nm3/h
Recommend use Professional
Design Mobile machine

Additional information

Weight 240 kg
Dimensions 1600 × 800 × 1480 mm
