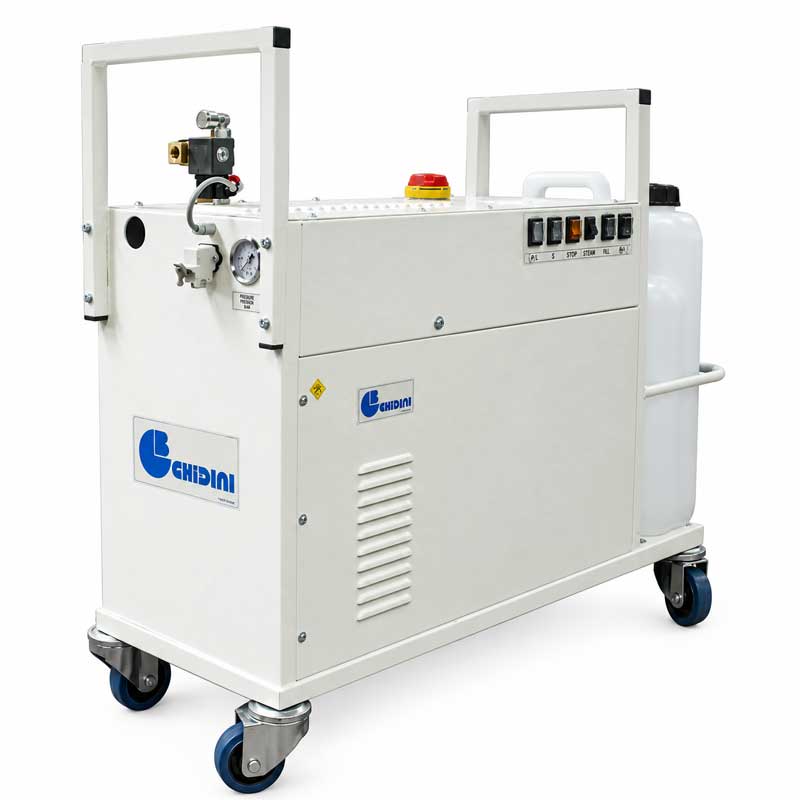

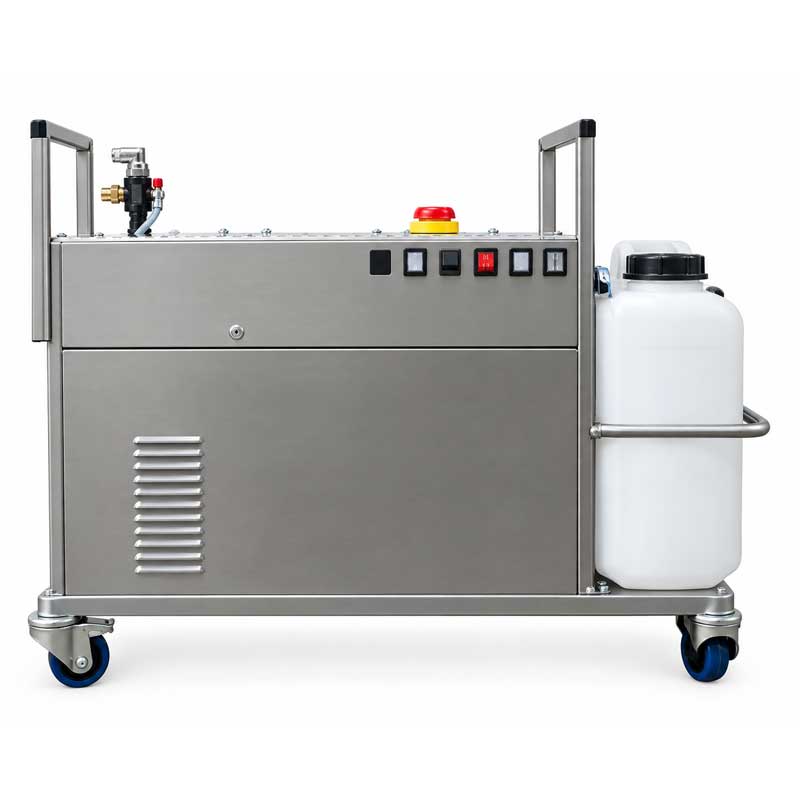

MXSG-1615M : Ghidini GD MAXI 16/ 15 kW | Générateur de vapeur électrique mobile 20 kg/h à 4.5 bar

Mobile electric steam generator 19.8 kg/hr with the water tank 20 liters

avec une puissance de 15 kW (jusqu'à 19.8 kg de vapeur chaude par heure), pression de vapeur de 0.5 à 4.5 bar

Plastic water tank is placed on the same trolley as the steal generator. Regulation of the working steam pressure is adjustable between 0.5 bar and 4.5 bar. The steam-generator shell is manufactured in accordance to the current PED regulations (Pressure Equipment Directive 97/23/CE).

Fabriqué en UE

Description générale :

The mobile steam generator with the heating capacity of 15kW is conceived for the production of hot steam which is needed for cleansing and steam sterilisation of stainless steel tanks, barrels, pipe systemsand fittings, filters and beverage filling units. The steam generator is suitable also for the heating of other equipment if they are equipped with the steam heat exchangers. Maximal operation pressure of steam is 4.5 bar (temperature of 170°C) . Production capacity is approximaly 20 kg of steam per hour.

The steam production unit is made of carbon steem (optionaly with the stainless steel outer sheets in the inox version) and it is designed as a mobile device due to its wheels and a handle. This equipment is perfectly suited for small wineries, breweries and other beverages producers.
The water from the 20L integrated plastic barrel is feeded into the steam generator´s reservoir (with capacity of 20 liters) is heated with the electric heating spiral up until steam is created.

The heating-up time takes about 15-20 min.
Operation time with one batch of water is approximaly 1 hour.
The plastical barrel on the mobile steam generator can then be re-filled with water and re-heated the water to continue its operation.

Nous recommandons d'utiliser le générateur de vapeur uniquement avec de l'eau douce (ou distillée) afin d'éviter la formation de dépôts minéraux sur les spirales chauffantes. En cas d'utilisation d'eau ordinaire non adoucie, il est nécessaire de détartrer régulièrement le générateur avec des produits chimiques spécialement conçus à cet effet.

Caractéristiques techniques :

Garantie : 12 mois

Équipement optionel :

Code produit :	Photo :	Description :	Prix ​​:

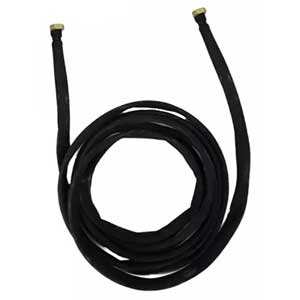

MXSG-H3M		3m steam hose	Sur demande

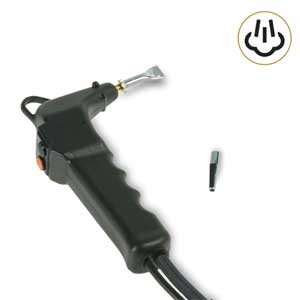

MXSG-SNA		Short Gun Nozzle (Short Nozzle Gun)	Sur demande

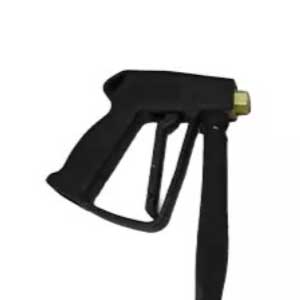

MXSG-SNB		Short No-gun Nozzle (the gun without long nozzle) – without the steam hose / with the 5m steam hose	Sur demande

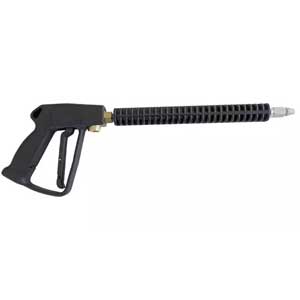

MXSG-SNC		Long Gun Nozzle (with the gun) for steam hose	Sur demande

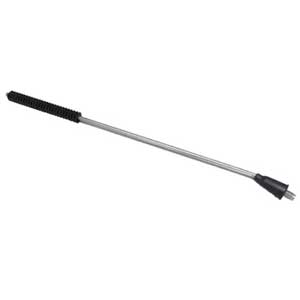

MXSG-SND		Long Nozzle (without the gun)	Sur demande
