ESG-7C Electric steam-generator 7kg/hr
Electric and automatic steam-generator 4 kW. Water feed can be connected directly to the water mains or to a condensate tank. Working steam pressure 3.5 bar. The steam-generator shell is manufactured in accordance to the current PED regulations.
ESG-16 Electric steam-generator 16kg/hr
Electric and automatic steam-generator, available from 7 to 15 kW. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable between 0.3 and 7 bar. The steam-generator shell is manufactured in accordance to the current PED regulations.
ESG-26C Electric steam-generator 18kW / 26kg/hr
Electric steam generator ready to be connected to steam appliances. It does not includes electrovalves. Can be used with 100% or 50% of the heating capacity 9kW / 18kW – 13/26 kg of hot steam per hour.

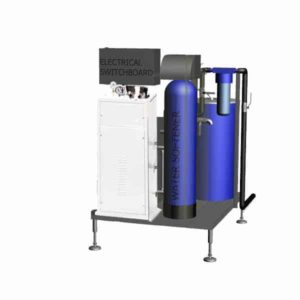

ESG-7MWT Electric steam-generator compact 7kg/hr (on the stainless steel frame, with water treatment)
Electric and automatic steam-generator, available power 3.5 kW. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is 3.5 bar. The steam-generator shell is manufactured in accordance to the current PED regulations. The water treatment system (for automatic water softening) and electric switchboard cabinet is included in this set. All system is mounted on the stainless steam frame. Easy installation – without electrician works – it is needed only to plug on the electric power socket on the wall.
ESG-16MWT Electric steam-generator compact 16kg/hr (on the stainless steel frame, with water treatment)
Electric and automatic steam-generator, available power from 7 kW to 15 kW. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable between 0.5 and 7 bar. This steam-generator is available with a single group of heaters (three elements) or with two independent sets of heaters (six elements). The steam-generator shell is manufactured in accordance to the current PED regulations. The water treatment system (for automatic water softening) and electric switchboard cabinet is included in this set. All system is mounted on the stainless steam frame. Easy installation – without electrician works – it is needed only to plug on the electric power socket on the wall.
ESG-26 Electric steam-generator 26kg/hr
Electric and automatic steam-generator, available from 9 to 18 kW ( from 12 to 26 kg of hot steam per hour). Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 4.5 bar. This steam-generator is available with a single or two independent heaters . The steam-generator shell is manufactured in accordance to the current PED regulations.
ESG-26MWT Electric steam-generator compact 26kg/hr
Electric and automatic hot steam-generator ESG-26MWT with power from 9 kW to 18 kW (from 12 to 26 kg of hot steam per hour), steam pressure from 1 to 4.5 bar. The Modulo ESG system includes water treatment set, electric switchboard cabinet and all pipe&electric connections.
Electric and automatic steam-generator, available power from 9 kW to 18 kW. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 4.5 bar. This steam-generator is available with a single or two independent heaters . The steam-generator shell is manufactured in accordance to the current PED regulations. The water treatment system (for automatic water softening) and electric switchboard cabinet is included in this set. All system is mounted on the stainless steam frame. Easy installation – without electrician works – it is needed only to plug on the electric power socket on the wall.
ESG-45 Electric steam-generator 45kg/hr
Electric and automatic steam-generator, available power from 15 kW to 30 kW (from 17 to 45 kg of hot steam per hour). Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 6 bar. This steam-generator is equipped with two independent sets of stainless steel heaters 2×15 kW. The steam-generator shell is manufactured in accordance to the current PED regulations.
ESG-45MWT Electric steam-generator compact 45kg/hr
The compact and automatic electric hot steam-generator ESG-45MWT with power from 15 kW to 30 kW (from 17 to 45 kg of hot steam per hour), steam pressure from 1 to 6 bar. The Modulo ESG system includes water treatment set, electric switchboard cabinet and all pipe&electric connections
Electric and automatic steam-generator, available power from 15 kW to 30 kW. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 6 bar.
This steam-generator is equipped with two independent sets of stainless steel heaters 2×15 kW. The steam-generator shell is manufactured in accordance to the current PED regulations.
The water treatment system (for automatic water softening) and electric switchboard cabinet is included in this set. All system is mounted on the stainless steam frame. Easy installation – without electrician works – it is needed only to plug on the electric power socket on the wall.
ESG-60 Electric steam-generator 60kg/hr
Electric and automatic steam-generator, available power from 20 kW to 40 kW (from 26 to 60 kg of hot steam per hour). Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 6 bar. This steam-generator is equipped with two independent sets of stainless steel heaters 2×20 kW. The steam-generator shell is manufactured in accordance to the current PED regulations.
ESG-60MWT Electric steam-generator compact 60kg/hr
The compact and automatic electric hot steam-generator ESG-60MWT with power from 20 kW to 40 kW (from 26 to 60 kg of hot steam per hour), steam pressure from 1 to 6 bar. The Modulo ESG system includes water treatment set, electric switchboard cabinet and all pipe&electric connections
Electric and automatic steam-generator, available power from 20 kW to 40 kW. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 6 bar.
This steam-generator is equipped with two independent sets of stainless steel heaters 2×25 kW. The steam-generator shell is manufactured in accordance to the current PED regulations.
The water treatment system (for automatic water softening) and electric switchboard cabinet is included in this set. All system is mounted on the stainless steam frame. Easy installation – without electrician works – it is needed only to plug on the electric power socket on the wall.
ESG-75 Electric steam-generator 75kg/hr
Electric and automatic steam-generator, available power from 25 kW to 50 kW (from 33 to 75 kg of hot steam per hour). Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 6 bar. This steam-generator is equipped with two independent sets of stainless steel heaters 2×25 kW. The steam-generator shell is manufactured in accordance to the current PED regulations.
ESG-90 Electric steam-generator set 60kW – up to 90kg/hr
Electric and automatic hot steam-generator set with power from 15 kW up to 60 kW (from 23 up to 90 kg of hot steam per hour). Electric and automatic system for the hot steam production consists of the steam generator unit and accessories. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 7 bar.
Every steam-generator is equipped with two independent sets of stainless steel heaters 4×15 kW. The steam-generator shell is manufactured in accordance to the current PED regulations.
Made in Italy
ESG-90MWT Electric steam-generator compact 90kg/hr
The compact and automatic electric hot steam-generator ESG-90MWT with power from 15 kW to 60 kW (from 19 to 90 kg of hot steam per hour), steam pressure from 1 to 6 bar. The Modulo ESG system includes water treatment set, electric switchboard cabinet and all pipe&electric connections
Electric and automatic steam-generator, available power from 15 kW to 60 kW. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 6 bar.
This steam-generator is equipped with two independent sets of stainless steel heaters 4×15 kW. The steam-generator shell is manufactured in accordance to the current PED regulations.
The water treatment system (for automatic water softening) and electric switchboard cabinet is included in this set. All system is mounted on the stainless steam frame. Easy installation – without electrician works – it is needed only to plug on the electric power socket on the wall.
ESG-120 Electric steam-generator set 80kW – up to 120kg/hr
Electric and automatic hot steam-generator set with power from 20 kW up to 80 kW (from 30 up to 120 kg of hot steam per hour). Electric and automatic system for the hot steam production consists of the steam generator unit and accessories. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 7 bar.
Every steam-generator is equipped with two independent sets of stainless steel heaters 4×20 kW. The steam-generator shell is manufactured in accordance to the current PED regulations.
ESG-120MWT Electric steam-generator compact 120kg/hr
The compact and automatical electric steam-generator, available power from 20 kW to 80 kW (26-120 kg of hot steam per hour). Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 6 bar. This steam-generator is equipped with two independent sets of stainless steel heaters 2×20 kW + 2×20 kW. The steam-generator shell is manufactured in accordance to the current PED regulations.
The water treatment system (for automatic water softening) and electric switchboard cabinet is included in this set. All system is mounted on the stainless steam frame. Easy installation – without electrician works – it is needed only to plug on the electric power socket on the wall.
Made in Italy
ESG-150 Electric steam-generator set 100kW – up to 150kg/hr
Electric and automatic hot steam-generator set with power from 25 kW up to 100 kW (from 38 up to 150 kg of hot steam per hour). Electric and automatic system for the hot steam production consists of the steam generator unit and accessories. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 7 bar.
Every steam-generator is equipped with two independent sets of stainless steel heaters 4×25 kW. The steam-generator shell is manufactured in accordance to the current PED regulations.
ESG-180 Electric steam-generator set 120kW – up to 180kg/hr
Electric and automatic system for the hot steam production consists of two joined steam generators. Total available power from 20 kW to 120 kW (180 kg of hot steam max). Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 7 bar. Every steam-generator is equipped with two independent sets of stainless steel heaters 6×20 kW. The steam-generator shell is manufactured in accordance to the current PED regulations.
ESG-240 Electric steam-generator set 160kW – up to 240kg/hr
Electric and automatic hot steam-generator set with power from 20 kW up to 160 kW (from 30 up to 240 kg of hot steam per hour). Electric and automatic system for the hot steam production consists of two joined steam generators. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 7 bar.
Every steam-generator is equipped with two independent sets of stainless steel heaters 8×20 kW. The steam-generator shell is manufactured in accordance to the current PED regulations.
ESG-300 Electric steam-generator set 200kW – up to 300kg/hr
Electric and automatic hot steam-generator set with power from 25 kW up to 200 kW (from 38 up to 300 kg of hot steam per hour). Electric and automatic system for the hot steam production consists of two joined steam generators. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 7 bar.
Every steam-generator is equipped with two independent sets of stainless steel heaters 8×25 kW. The steam-generator shell is manufactured in accordance to the current PED regulations.
