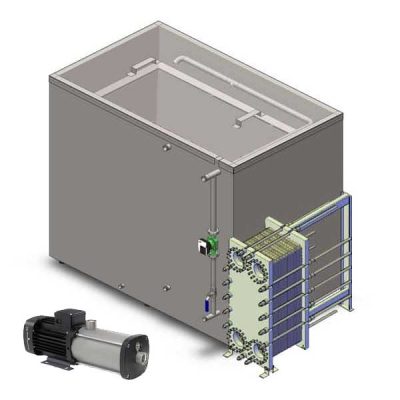

ICWT-8000 : Insulated ice water tank (glycol tank) 8000 liters with two pumps and the heat exchanger

 10601 excluding tax

The ICWT-8000 is a coolant reservoir set that includes an industrial cooling water tank 8000 liters, external plate heat exchanger and two pumps. This set is designed for cooling and accumulation of cold water (usually with glycol) and its following utilisation for beer cooling in the second cooling stage and then for further cooling of particular tanks in the brewery. The condensing unit (separated component that is not included as part of this cooling reservoir) with plate heat exchanger is connected to primary circuit (cooling of media). Cooled tanks are connected to the ICWT in the secondary circuit. It is possible to install more condensation units in series. This tank is coupled with two pumps with capacity of 95 l/min for closed primary and secondary circuits. It is mounted on 4 adjustable feet and closed with a stainless cover. We recommend keeping the cooler within a max. distance from the ice water tank of 25 m. Antifreezer is not included in the delivery. We recommend to use non-toxic cooling liquid according to your possibilities.

Description

Print Friendly, PDF & Email

Industrial tank to preparation of cooling water 8000 liters with external heat exchanger and pumps

The ICWT-8000 is a coolant reservoir set that includes an industrial cooling water tank 8000 liters, external plate heat exchanger and two pumps. This set is designed for cooling and accumulation of cold water (usually with glycol) and its following utilisation for beer cooling in the second cooling stage and then for further cooling of particular tanks in the brewery. The condensing unit (separated component that is not included as part of this cooling reservoir) with plate heat exchanger is connected to primary circuit (cooling of media). Cooled tanks are connected to the ICWT in the secondary circuit. It is possible to install more condensation units in series. This tank is coupled with two pumps with capacity of 95 l/min for closed primary and secondary circuits. It is mounted on 4 adjustable feet and closed with a stainless cover. We recommend keeping the cooler within a max. distance from the ice water tank of 25 m. Antifreezer is not included in the delivery. We recommend to use non-toxic cooling liquid according to your possibilities.



icwt-40-001Parameters

  • Total capacity 8212 l
  • Usable capacity 8000 l
  • Length without additional framing of condensation units 2500 mm
  • Width 2000 mm
  • Height 2350 mm
  • Weight 1200 kg
  • Material 1.4301
  • Polyurethane insulation 50 mm
  • Insulation covered with ground metal sheets 1 mm thick 1.4301
  • Water inlet branch 2x DN 32
  • Water outlet branch 2x DN 40
  • NTC probe box Ø 10 mm
  • Min. operating temperature -15°C
  • Max. operating temperature 85°C



Accessories

  • Plate heat exchanger
  • Discharge and filling armatures DN 25
  • 2x water inlet branch DN 32
  • 2x water outlet branch DN 40
  • Framing for 2 condensation units
  • NTC probe box
  • Probe NTC
  • 2x Circulation Pumps Wilo Yonos PICO 25/1-6 230V 180mm Rp1″
  • Brass filter of coarse dirt
  • Electric switchboard
  • Main switch 380V 16A
  • Digital temperature regulator DIXEL XR20 D 230V 50 HZ
  • Compressor contactor 3x230V 50 Hz 10A
  • 2x motor starter 4-6A 380V



Warranty:

  • Tank  36 months
  • Pump 24 months
  • Electric components 24 months



Additional information

Weight 1250 kg
Dimensions 2500 × 2000 × 2400 mm
Processed quantities

8000L
