» » » » HPF-80 Hydraulic fruit press 80 liters/hour

HPF-80 Hydraulic fruit press 80 liters/hour

1379 excluding tax

The hydraulic fruit presses HPF-80 with production capacity 80 liters of must per hour are delivered to cider production lines with small and medium production volume. They are more powerful devices than manual presses, yet their price and service demands are significantly lower than most of pneumatic presses.

Product Enquiry
SKU: HPF-80 Category: Tags: ,

4% discount for ordering from 4 to 8 pieces. 8% discount for ordering 9 or more pieces.

Description

The hydraulic fruit presses HPF-80 with production capacity 80 liters of must per hour are delivered to cider production lines with small and medium production volume. They are more powerful devices than manual presses, yet their price and service demands are significantly lower than most of pneumatic presses.

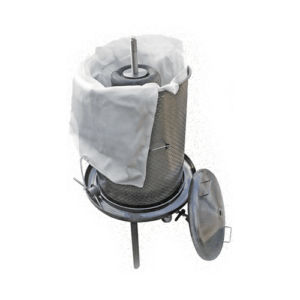

  • This hydraulic press is designed for pressing of shredded apples, pears or other fruits to make the cider.
  • The pressing is achieved without the need for electricity and hand work, using only water pressure.
  • Water is filled through the valve into the inner rubber bag that expands and presses the fruit to the walls of the press.
  • The sufficient water pressure is 2,5 bar for pressing and it is regulated by a valve and a pressure gauge on the water supply.
  • The pressure is secured by a safety valve.
  • The press speed compared to manual presses is up to 4 times higher.
  • For each water press we deliver spare press bags for the sediment sludge.



blokove-schema-ciderline-modulo-zaklad-001-EN



ParametersHPF-80HPF-120HPF-170HPF-250BPF-700PPF-1100PPF-2100
Performance [liters of must/hr]8012017025070011002100
Volume of the press drum [l]8012017025070011002100
Collecting container volume [ l ]304565100280230330
Pusher elementrubber bagrubber bagrubber bagrubber bagbeltpneumatic elementpneumatic element
Filter elementtextiletextiletextiletextilecylindersievesieve
Min. pressure Water / AirW 2,5 barW 2,5 barW 2,5 barW 2,5 barMechanical powerA 2,5 barA 2,5 bar
Length [mm]600800880880210023502950
Width [mm]600800900900125012701470
Height [mm]1300130013501550175016402300
Weight [kg]647683105650490830
El. supply - standard [ kW ]1,5
1,51,51,51,534,8
El. protection - standard1x 230V/16A1x 230V/16A1x 230V/16A1x 230V/16A3x 400/16A3x 400/16A3x 400/16A
MaterialAISI 304AISI 304AISI 304AISI 304AISI 304AISI 304AISI 304
Warranty12 months12 months12 months12 months12 months12 months12 months

Additional information

Weight 80 kg
Dimensions 1200 x 800 x 1450 mm
