Description

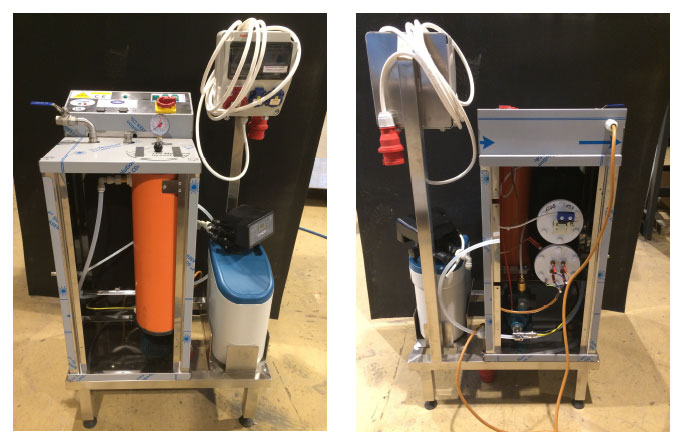

Electric and automatic steam generator
with power capacity of 15 kW (up to 16 kg of hot steam per hour), steam pressure from 0.5 to 7 bar, the compact solution of the steam generator and the water treatment system on the stainless steel frame, with all connections.
Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable between 0.5bar and 7bar. The steam-generator shell is manufactured in accordance to the current PED regulations (Pressure Equipment Directive 97/23/CE).
General description :
The steam boiler ESG-16MWT is an equipment producing steam. For its operation, the machine has to be connected to an external power and water supply. It is necessary to use only treated soft water with the steam generator.
The machine is provided with a level control device and automatic water feeding. Thanks to its frontal control panel, the boiler results to be very user-friendly and easy to use.
The water treatment system (for automatic water softening) and electric switchboard cabinet is included in this set. All system is mounted on the stainless steam frame. Easy installation – without electrician works – it is needed only to plug on the electric power socket on the wall.
Recommended usage :
- Heating of brewhouses – recomended for brewhouses with maximal usage volume 150 liters per one brew
- Heating of hot water in heat water tanks – boilers
- Sterilization of kegs or bottles in using with keg washers-fillers or bottle rinsers-fillers
- Sterilization of vessels, pipes, hoses and food equipment or farmacy equipment by hot steam
Technical features :
| Power supply | 220/380V – 3Ph – 50/60 Hz |
| Boiler capacity | 16 litres |
| Steam pressure | 0.3 – 7.0 bar |
| Pump motor power | 0.8 Hp / 0.55 kW |
| Boiler heater capacity | 15 kW |
| Sound intensity level | < 70 dB(A) |
| Working temperature | + 5 ÷ + 80 °C |
| Working humidity | 90 % max. |
| Temperature for storing | -20 ÷ +50 °C |
| Net dimensions | 650 x 450 x 1000 mm |
| Net weight | 74 Kg |
| Overall dimensions (packaging included) | 670 x 470 x 1030 mm |
| Gross weight (packaging included) | 78 kg |
Technical description :
| Pos. | Description | Pos. | Description |
| 1 | Pressure gauge | 13 | Steam inlet tap |
| 2 | Warning light indicating presence of tension | 14 | Condensation return connection with valve |
| 3 | Control panel | 15 | Check valve |
| 4 | Boiler switch | 16 | Water solenoid valve V220 – 1Ph – 50Hz |
| 5 | Warning light for boiler heater | 17 | Hose connection Ø12 |
| 6 | Warning light for water feeding | 18 | Water filter |
| 7 | Disconnecting switch | 19 | 1-phase water pump |
| 8 | Pressure switch | 19 | 3-phase water pump |
| 9 | Boiler | 20 | Safety valve G 1/2″ |
| 10 | Complete automatic water level control | 21 | Boiler insulation |
| 11 | Heater flange | 22 | Double tap for water level indicator |
| 12 | Covering body | 23 | Gate valve for boiler exhaust |
Description :
1 – treated water inlet (female thread G 3/8”)
2 – steam output (female thread G 1/2”)
3 – power supply cable (from the external power switch cabinet – is not included)
4 – boiler sludge drain outlet (female thread G 1/2”)
5 – condensate return inlet (female thread G 1/2”)
Diagram of a closed-cycle steam circuit (return condensate is reused):
Description :
SG – steam generator
SA – steam appliance
CRT – condensate recovery tank
1 – gate valves
2 – condensate dischargers
3 – check valves
Warranty : 12 months
Optional equipment :
| CT-MX16 : Steel tank for returned condensate 45L, including level sensor, solenoid valve and thermostat (for MAXI ESG-16) | € 1480,- |
| CT-MX16S : Stainless steel tank AISI 304 for returned condensate 45L, including level sensor, solenoid valve and thermostat | all components in contact with water are made in stainless steel (for MAXI ESG-16) | € 1620,- |
| SB304-MX16 : Steam boiler in stainless steel AISI 304 (for MAXI ESG-16) | € 1980,- |
| CSW304-MX16 : All components of the steam generator in contact with water in stainless steel AISI 304 (for MAXI ESG-16) | € 4250,- |
| TSD-MX16 : Cooling tank with the boiler sludge draining system (for MAXI ESG-16) | € 990,- |
| ASR-MX16 : Automatic sludge removal (for MAXI ESG-16) | € 790,- |
| WTS-MX24 : Water treatment system – necessary to prevent damage to the machine by mineral deposits (for MAXI 24, ESG-16) | € 990,- |
| SF-MX24 : Steel frame with adjustable feet under the steam generator (for MAXI 24, ESG-16) | € 200,- |
Automatic water softening unit
The set includes the automatic water softener WTS-BS-RX65C with parameters :
- Recommended flow: <0.2 m3 / h (depends on the hardness of the inlet water)
- Capacity of cation tank: 4 liters
- Softening filter pressure vessel: 7 “x 13” (18 cm x 33 cm)
- Salt consumption per regeneration: 0.51 kg
- Pressure bottle – cylinder neck diameter: 2.5 “(6.35 cm)
- Input and output: male thread 3/4 “
- Waste connection: 1/2 “garden hose (not included)
- Working pressure: 2 – 6 bar
- Saline suction connection: 3/8 “tube with a diameter of 10 mm (included)
- Inlet and outlet water pressure difference: 0.05 – 0.3 bar depending on the size of the filter
- Voltage: 230V / 50 Hz
- Power consumption: 5 W
- Dimensions : L x W x H : 18 x 33 x 55 cm
- Total weight of filter with filter cartridge without water: approx. 12 kg
Amount of water in the container needed for regeneration: 3.2 liters (a maximum of 0.16 kg of salt – 100% saline solution is dissolved in 1 liter of water). The water is filled in automatically, the amount of water filled is set in the menu of the control panel.
Warranty : 12 months
Delivery time : from 3 days to 6 weeks (according store status)
