Machines for manual, semi-automatic and fully-automatic rinsing of kegs and for isobaric filling process of kegs by carbonated beverages.

CM-HEEL-230V-2200W Consumption material : Heating  element 230V 2200W
CM-HEEL-230V-2200W Consumption material : Heating  element 230V 2200W
CM-HEEL-230V-2200W Consumption material : Heating element 230V 2200W

Consumption material – the ceramic heating element 230V 2200W for our machines :

  • KCM-10 Keg rinsing and filling machine
  • KCA-25 Keg rinsing and filling machine
  • CIP-51/52/101/102 Cleaning and sanitizing unit
not rated 90 excluding tax Add to Cart
NOW DISCOUNT!
KCM-10 Machine for the manual rinsing and filling of kegs 7-10 kegs/hour
KCM-10 Machine for the manual rinsing and filling of kegs 7-10 kegs/hour
KCM-10 Machine for the manual rinsing and filling of kegs 7-10 kegs/hour

The KCM-10 is a multifunction machine that includes a device for rinsing of stainless steel kegs and the filling of carbonizated beverages like beer, limonade wine or cider, into kegs. The equipment is designed for the filling and rinsing of kegs with beer, cider, wine and for other beverages, using manually operated valves and a pump.

The machine is designed for cleaning and filling kegs with a volume from 15 to 50 liters. The working performance is :

  • Two cycles : the rinsing cycle & the sanitation cycle : the maximal performance 10 kegs per hour ( with volume of 50 liters).
  • Three cycles : the rinsing cycle & the sanitation cycle & the filling cycle : the maximal performance 7 kegs per hour ( with volume of 50 liters).





Inserting of kegs is manual, removing of kegs after finalizing of filling cycle is manual. Operator manually opens and closes all valves, and he switches on the pump manually as well. The machine is equipped with an integrated reservoir for the alcalic sanitizing solution.

Material is stainless steel AISI 304.

Rated 5.00 out of 5
4890 4580 excluding tax Add to Cart
KRF-21 Machine for the semiautomatic rinsing and sanitizing of kegs 12-20 kegs/hour
KRF-21 Machine for the semiautomatic rinsing and sanitizing of kegs 12-20 kegs/hour
KRF-21 Machine for the semiautomatic rinsing and sanitizing of kegs 12-20 kegs/hour

The KRF-21 is a multifunction machine that includes a device for rinsing of stainless steel kegs with-  one position for a keg. The equipment is designed for the rinsing of kegs for beer, cider, wine and for other beverages, using semi-automatically operated valves and a pump.

Operating capacity : from twelve up to twenty kegs per hour (rinsing and sanitizing).

not rated 10502 excluding tax Add to Cart
NOW DISCOUNT!

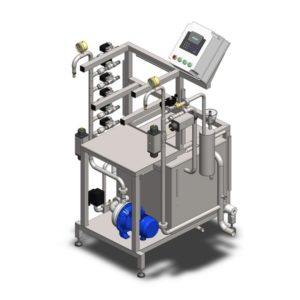

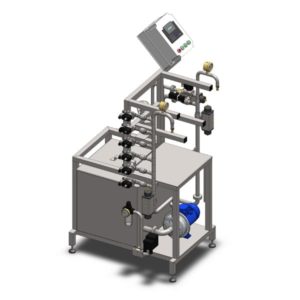

KCA-25 Machine for the automatic rinsing and filling of kegs 10-25 kegs/hour
KCA-25 Machine for the automatic rinsing and filling of kegs 10-25 kegs/hour
KCA-25 Machine for the automatic rinsing and filling of kegs 10-25 kegs/hour

The KCA-25 is a multifunction machine that includes a device for automatic rinsing of stainless steel kegs and the automatic isobaric filling of carbonizated beverages like beer, limonade wine or cider, into kegs. The equipment is designed for the filling and rinsing of kegs with beer, cider, wine and for other beverages, using by computer control operated valves and a pump. The machine is equipped with only one tank for storage, heating and dosing of the alcalic sanitizing solution during the CIP cycle.

Operating capacity : ten – twenty five kegs per hour (all rinsing, sanitizing cycles and the filling cycle / only rinsing and sanitizing cycles)..

The machine is designed for cleaning and filling kegs with a volume from 15 to 50 liters. The working performance is :

  • Two cycles : the rinsing cycle & the sanitation cycle : the maximal performance 25 kegs per hour ( with volume of 50 liters).
  • Three cycles : the rinsing cycle & the sanitation cycle & the filling cycle : the maximal performance 10 kegs per hour ( with volume of 50 liters).

The device is controlled by a PLC – it is possible to individually change the time of each cycle. Inserting of kegs is manual, removing of kegs after finalizing of filling cycle is manual. The computer opens and closes all valves, switches on the pump and controls a temperature of the sanitizing solution automatically as well. The machine is equipped with an integrated reservoir for the alcalic sanitizing solution.

not rated 11088 10645 excluding tax Add to Cart
KCA-20D Machine for the automatic rinsing and filling of kegs 8-20 kegs/hour
KCA-20D Machine for the automatic rinsing and filling of kegs 8-20 kegs/hour
KCA-20D Machine for the automatic rinsing and filling of kegs 8-20 kegs/hour

The KCA-20D is a multifunction machine that includes a device for automatic rinsing of stainless steel kegs and the automatic isobaric filling of carbonizated beverages like beer, limonade wine or cider, into kegs. The equipment is designed for the filling and rinsing of kegs with beer, cider, wine and for other beverages, using by computer control operated valves and a pump. In comparation with the KCA-25 machine the KCA-20D machine includes two tanks and two pumps to sanitation of kegs using both alcalic and acid sanitizing solutions. Operating capacity : from  eight to twenty kegs per hour (all rinsing, sanitizing cycles and the filling cycle / only rinsing and sanitizing cycles).
The machine is designed for cleaning and filling kegs with a volume from 15 to 50 liters. The working performance is :

  • Two cycles : the rinsing cycle & the sanitation cycle : the maximal performance 20 kegs per hour ( with volume of 50 liters).
  • Three cycles : the rinsing cycle & the sanitation cycle & the filling cycle : the maximal performance 8 kegs per hour ( with volume of 50 liters).

The device is controlled by a PLC – it is possible to individually change the time of each cycle. Inserting of kegs is manual, removing of kegs after finalizing of filling cycle is manual. The computer opens and closes all valves, switches on the pump and controls a temperature of the sanitizing solution automatically as well. The machine is equipped with an integrated reservoir for the alcalic sanitizing solution.

not rated 12690 excluding tax Add to Cart
KRF-42 Machine for the semiautomatic rinsing and sanitizing of kegs 25-40 kegs/hour
KRF-42 Machine for the semiautomatic rinsing and sanitizing of kegs 25-40 kegs/hour
KRF-42 Machine for the semiautomatic rinsing and sanitizing of kegs 25-40 kegs/hour

The KRF-42 is a multifunction machine that includes a device for rinsing of stainless steel kegs with-  two positions for kegs. The equipment is designed for the rinsing of kegs for beer, cider, wine and for other beverages, using semi-automatically operated valves and a pump.

Operating capacity : from twenty five up to fourty kegs per hour (rinsing).

not rated 14630 excluding tax Add to Cart
KCA-50 Machine for the automatic rinsing and filling of kegs 20-50 kegs/hour
KCA-50 Machine for the automatic rinsing and filling of kegs 20-50 kegs/hour
KCA-50 Machine for the automatic rinsing and filling of kegs 20-50 kegs/hour

The KCA-50 is a multifunction machine that includes a device for automatic rinsing of stainless steel kegs and the automatic isobaric filling of carbonizated beverages like beer, limonade wine or cider, into kegs. The equipment is designed for the filling and rinsing of kegs with beer, cider, wine and for other beverages, using by computer control operated valves and a pump. Every machine of both is equipped with only one tank for storage, heating and dosing of the alcalic sanitizing solution during the CIP cycle.

Operating capacity : from  twenty to fifty kegs per hour (all rinsing, sanitizing cycles and the filling cycle / only rinsing and sanitizing cycles).

The machine is designed for cleaning and filling kegs with a volume  15, 20, 30 or 50 liters. The working performance is :

  • Two cycles : the rinsing cycle & the sanitation cycle : the maximal performance 50 kegs per hour ( with volume of 50 liters).
  • Three cycles : the rinsing cycle & the sanitation cycle & the filling cycle : the maximal performance 20 kegs per hour ( with volume of 50 liters).

The device is controlled by a PLC – it is possible to individually change the time of each cycle. Inserting of kegs is manual, removing of kegs after finalizing of filling cycle is manual. The computer opens and closes all valves, switches on the pump and controls a temperature of the sanitizing solution automatically as well. The machine is equipped with an integrated reservoir for the alcalic sanitizing solution.

Two positions for paralel cleaning, sanitizing and filling of steel kegs.

not rated 21750 excluding tax Add to Cart
KCA-40D Machine for the automatic rinsing and filling of kegs 16-40 kegs/hour
KCA-40D Machine for the automatic rinsing and filling of kegs 16-40 kegs/hour
KCA-40D Machine for the automatic rinsing and filling of kegs 16-40 kegs/hour

The KCA-40D is a multifunction machine that includes a device for automatic rinsing of stainless steel kegs and the automatic isobaric filling of carbonizated beverages like beer, limonade wine or cider, into kegs. The equipment is designed for the filling and rinsing of kegs with beer, cider, wine and for other beverages, using by computer control operated valves and a pump. In comparation with the KCA-50 machine the KCA-40D machine includes two tanks and two pumps to sanitation of kegs using both alcalic and acid sanitizing solutions (two tanks on each machine = total is four tanks).

Operating capacity : from  sixteen to forty kegs per hour (all rinsing, sanitizing cycles and the filling cycle / only rinsing and sanitizing cycles).

The machine is designed for cleaning and filling kegs with a volume  15, 20, 30 or 50 liters. The working performance is :

  • Two cycles : the rinsing cycle & the sanitation cycle : the maximal performance 40 kegs per hour ( with volume of 50 liters).
  • Three cycles : the rinsing cycle & the sanitation cycle & the filling cycle : the maximal performance 16 kegs per hour ( with volume of 50 liters).

The device is controlled by a PLC – it is possible to individually change the time of each cycle. Inserting of kegs is manual, removing of kegs after finalizing of filling cycle is manual. The computer opens and closes all valves, switches on the pump and controls a temperature of the sanitizing solution automatically as well. The machine is equipped with an integrated reservoir for the alcalic sanitizing solution.

Two positions for paralel cleaning, sanitizing and filling of steel kegs.

not rated 24872 excluding tax Add to Cart
PKF-50 Machine for the automatic filling of plastic kegs 45-55 kegs/hour
PKF-50 Machine for the automatic filling of plastic kegs 45-55 kegs/hour
PKF-50 Machine for the automatic filling of plastic kegs 45-55 kegs/hour

The PKF-50 is an equipment intended for the automatic filling of plastic kegs designed for beer, cider, wine and for other beverages. Operating capacity: kegs: 45 – 55 per hour (Polikeg®,  Ecokeg®,  Petainer®,  Key-Keg®,  Key  Keg®  Slim  Line).

not rated 24900 excluding tax Add to Cart
KWF-19 Machine for the automatic rinsing and filling of kegs 16-19 kegs/hour
KWF-19 Machine for the automatic rinsing and filling of kegs 16-19 kegs/hour
KWF-19 Machine for the automatic rinsing and filling of kegs 16-19 kegs/hour

The KWF-19 is an equipment used for automatic rinsing and filling of kegs designed for beer, cider, wine and for other beverages. Operating capacity: kegs : 16 – 19 per hour (50L / 20 or 30 L).

not rated 25908 excluding tax Add to Cart

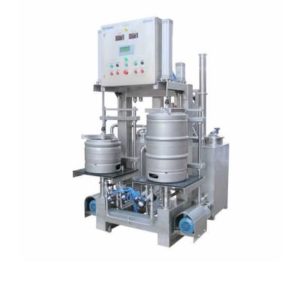

KWR-30 Machine for the automatic rinsing and filling of kegs 25-30 kegs/hour
KWR-30 Machine for the automatic rinsing and filling of kegs 25-30 kegs/hour
KWR-30 Machine for the automatic rinsing and filling of kegs 25-30 kegs/hour

The KWR-30 is an equipment used for automatic rinsing and filling of kegs designed for beer, cider, wine and for other beverages. The machine was designed for cleaning and rinsing of kegs with a volume of 15/20/30/50 liters. The working performance is 25-30 kegs per hour (for 50L kegs).

not rated 34450 excluding tax Add to Cart

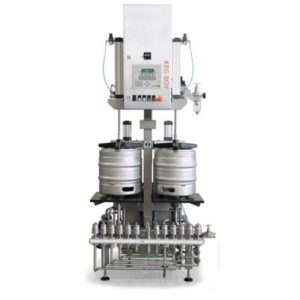

KWF-35 Machine for the automatic rinsing and filling of kegs 25-35 kegs/hour
KWF-35 Machine for the automatic rinsing and filling of kegs 25-35 kegs/hour
KWF-35 Machine for the automatic rinsing and filling of kegs 25-35 kegs/hour

The KWF-35 is an equipment designed for semi-automatic washing, sanitation and filling of kegs for beer, cider, wine or other beverages. Operating capacity: kegs : 25 – 35 per hour ( washing + filling cycles).

The compact machine is already connected in the factory with cables and pipes and is tuned and tested.
Washing is done by pulse spray. Each step of washing and filling process is controlled by two-way sensors. The implementation is done carefully. The machine construction is open, accessible from all sides for easy handling.

not rated 69600 excluding tax Add to Cart
